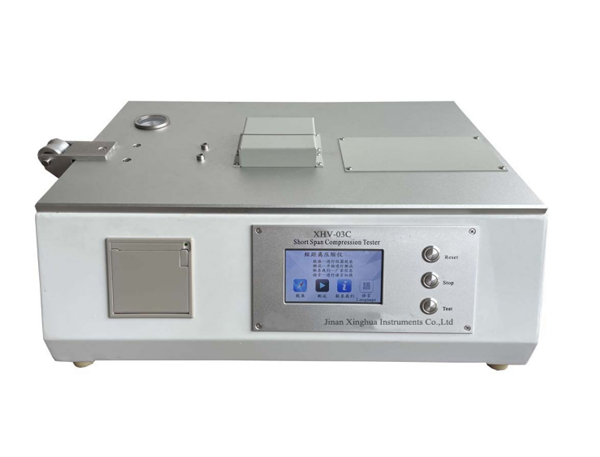

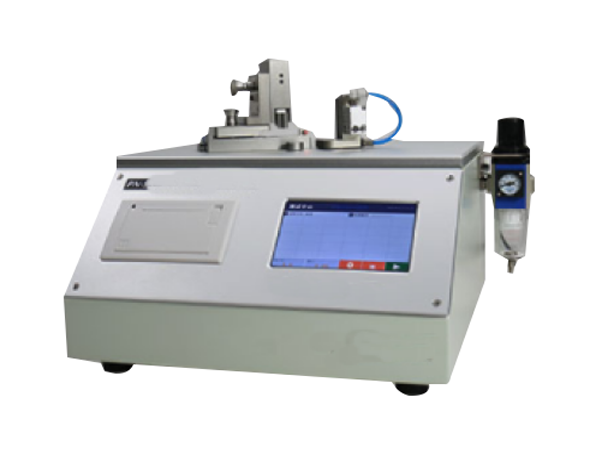

Short Span Compression Tester is used to measure the compressive strength of paper and cardboard samples by the SCT method. It is considered an important property and can be used to predict the performance of corrugated cardboard sheet used in the manufacture of corrugated cardboard.Compressive strength determines the stacking ability of corrugated boxes. The aim is to produce strong boxes, and at the same time use a minimum of raw material. Short Span Compression is considered an important property and can be used to predict the performance of container board used in the manufacture of corrugated boxes.
ISO 9895-2008 Paper and board-Compressive strength-Short span test
TAPPI T826 Short span compressive strength of containerboard
DIN 54518 Testing of paper and board - compression strength, short span test
BS 7325 Method for determination of the compressive strength of paper and board by the short span test
Adopt high precision load cell, USA ARM microprocessor ensure data acquisition fast and accurate, factory internal calibrate the force accuracy is within 0.5%.
High performance stepper motor and high precision ball screw for driven to make running steady and accurate.
Automatic pneumatic clamp the specimen.
Aluminum alloy panel, high quality stainless steel chuck and reasonable design, ensure the instrument durable.
High resolution color touch screen operation system, automatic complete operation, has statistics function. Micro-printer, fast and clear printing. Can be connected to PC, save, output results.
The calibration procedure is specially set inside the instrument, calibration process is easy.
Measurement Range | 0-500 N (112lb) |
Unit | N, kN/m, lb, lb/in, (N·m)/g |
Resolution | 0.1N |
Test Accuracy | ±1% F.s |
Sample Width | 15±0.1 mm |
Clamp Length | 30±0.5 mm |
Test Speed | 3±0.1 mm/min (1-10mm/min adjustable) |
Span Between Clamps | 0.7±0.05mm (0.5-2mm adjustable) |
Date Output | Thermal Printer, PC |
Clamping Force | 2300N (adjustable) |
Dimension | 550×370×200 (mm) |
Weight | 21Kgs |
Power Supply | AC 100V- 240V, 50/60Hz |
Standard Configuration | Host, PC Software |

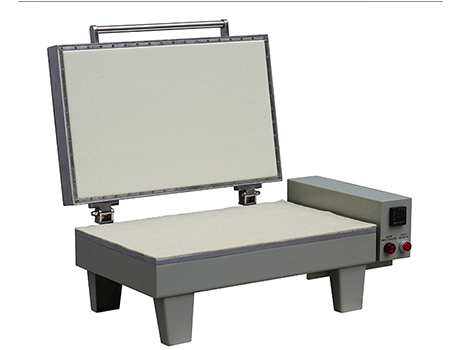

XHV-20 Paper Sheet Dryer
XHV-12B Tissue Paper Water Absorption Tester

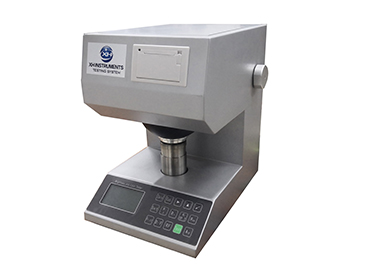

XHV-09 Brightness and Color Tester

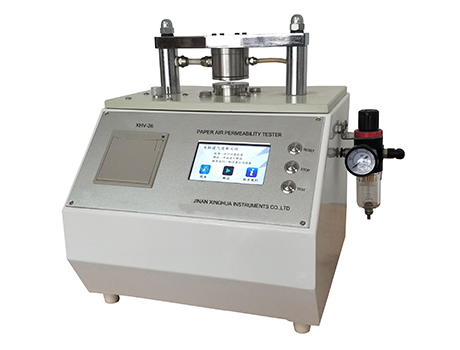

XHV-26 Paper Air Permeability Tester

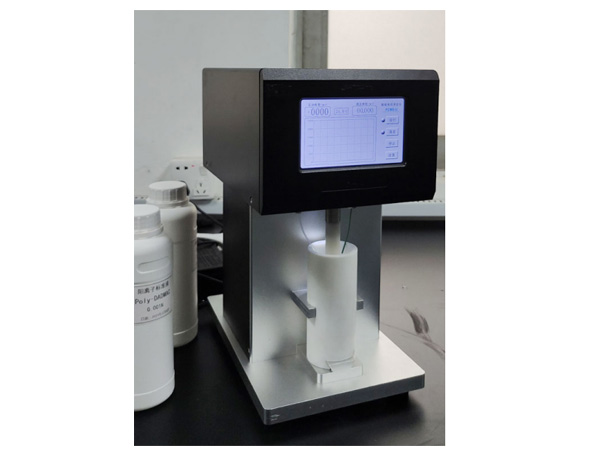

XHV-40 Particle Charge Analyzer

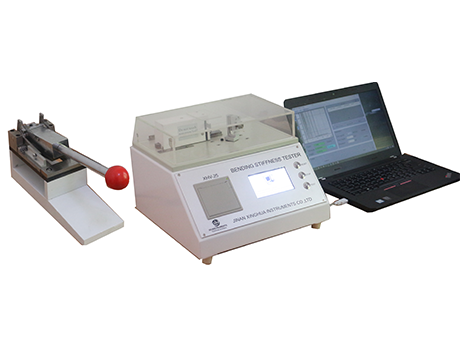

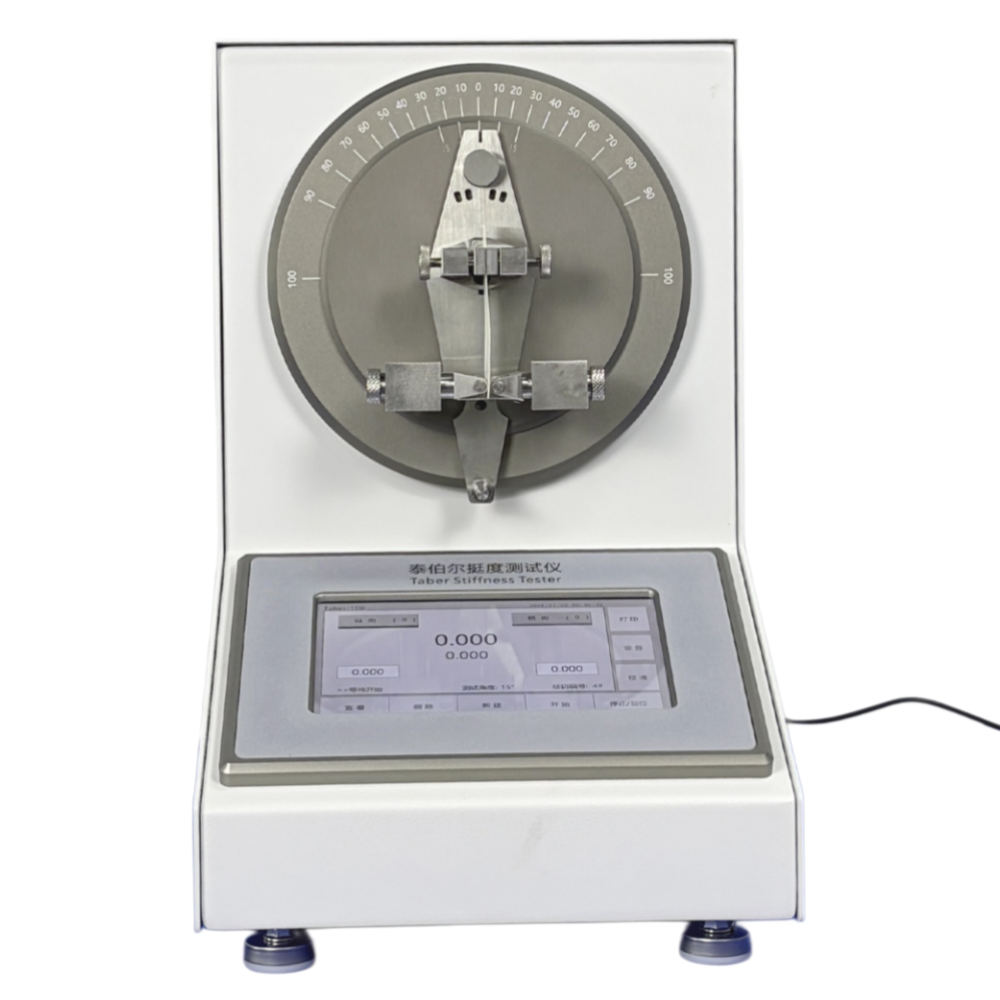

XHV-25A Paper and Cardboard Stiffness Tester

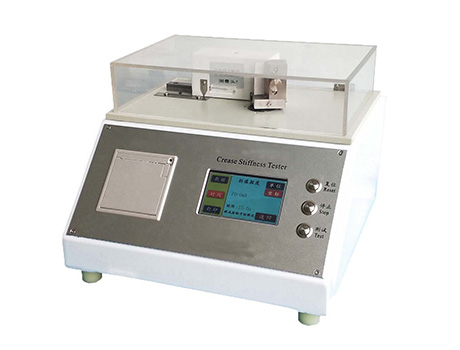

XHV-25B Paper Crease and Stiffness Tester

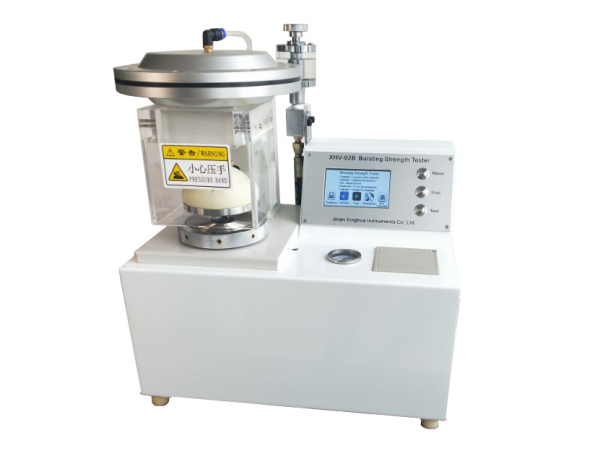

XHV-02A Paper Bursting Strength Tester
XHV-41 Diaper Foreign Material Tester

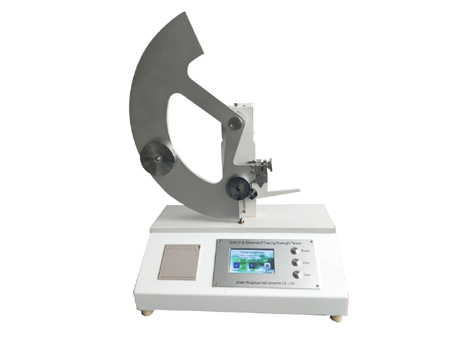

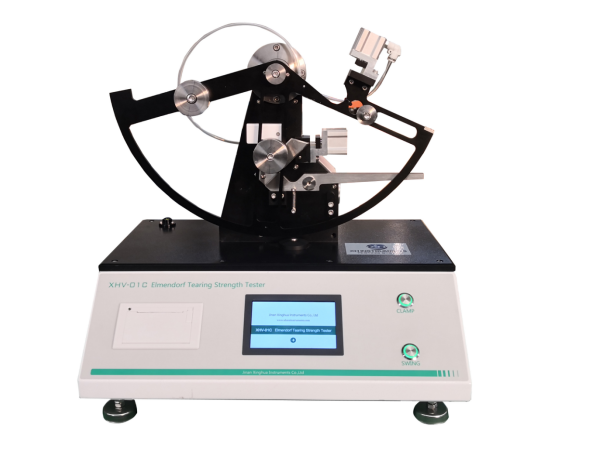

XHV-01C Elmendorf Paper and Board Tearing Strength Tester
XHV-01 Paper and Board Tearing Strength Tester

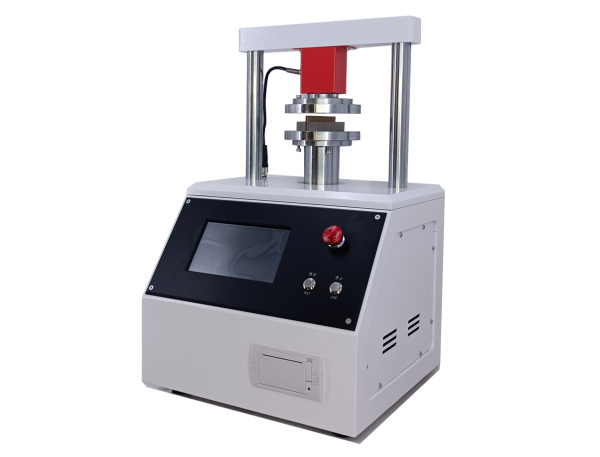

XHV-03 Crush Tester
XHV-25AT Pneumatic Paper Stiffness Tester

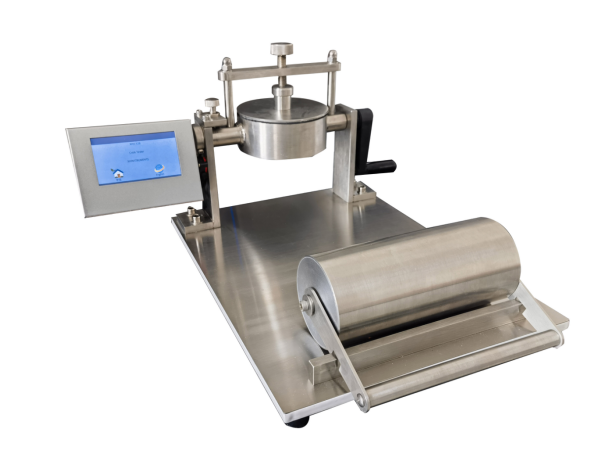

XHV-12 Cobb Moisture Absorption Tester

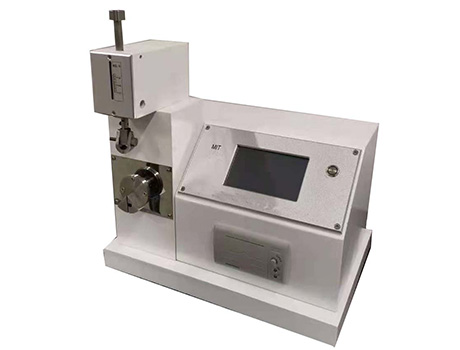

XHV-21 Paper MIT Folding Tester
XHV-43B Diaper Permeability Tester

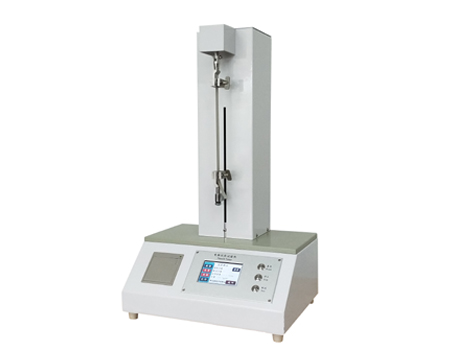

XHL-01P Paper Tensile Strength Tester
XHV-43C Diaper Permeability Tester

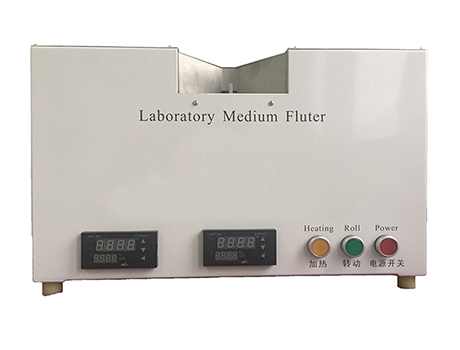

XHV-03-5 Concora Medium Fluter

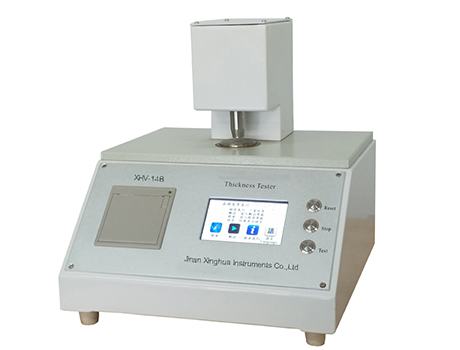

XHV-14B Automatic Paper Thickness Tester
XHV-42 Diaper Leakage Tester

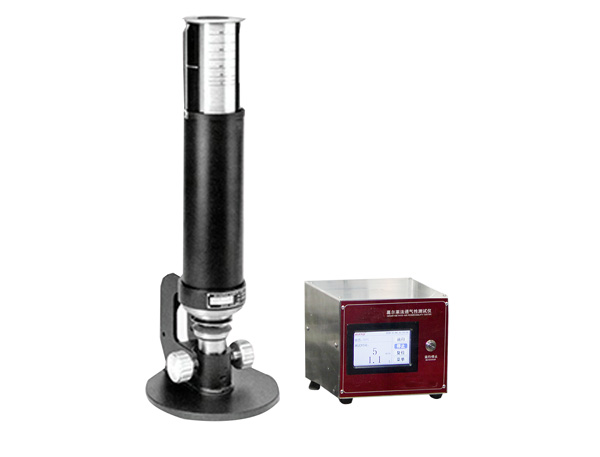

XHV-26N Gurley Air Permeability Tester
XHV-43A Diaper Permeability Tester

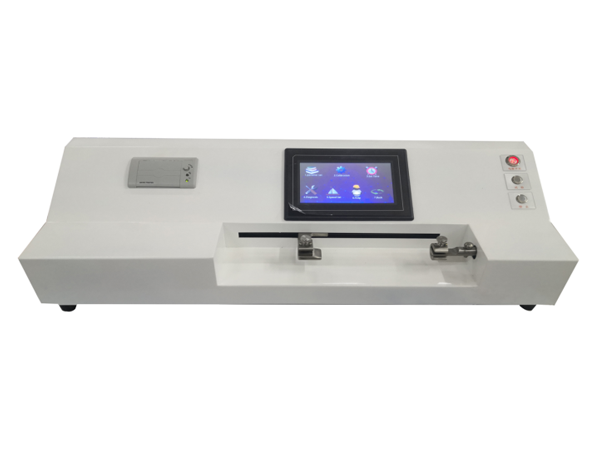

XHL-01HP Horizontal Paper Tensile Strength Tester

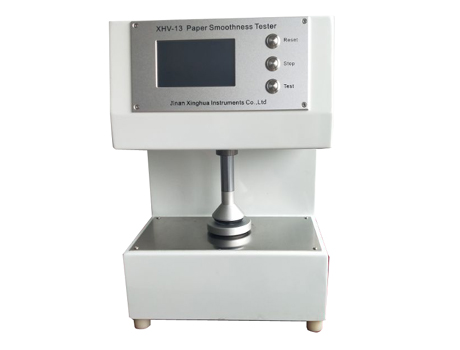

XHV-13 Bekk Smoothness Tester

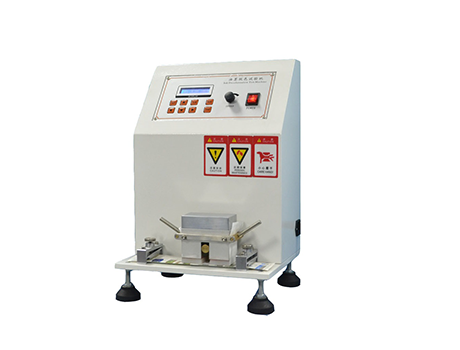

XHV-05 Ink Abrasion Tester
XHV-06 Handle O-Meter
XHV-30 Paper Dust Tester

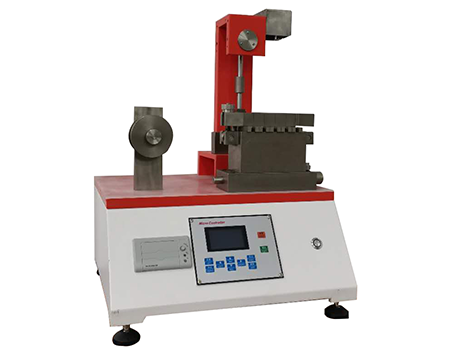

XHV-23 Scott Internal Bond Tester

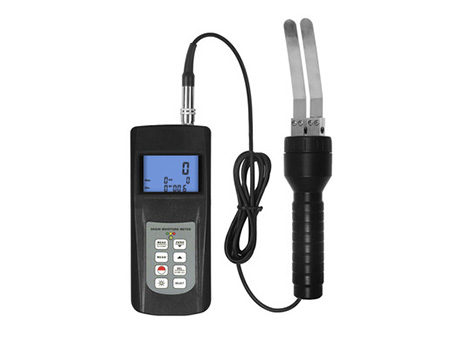

XHF-32 Paper Moisture Meter

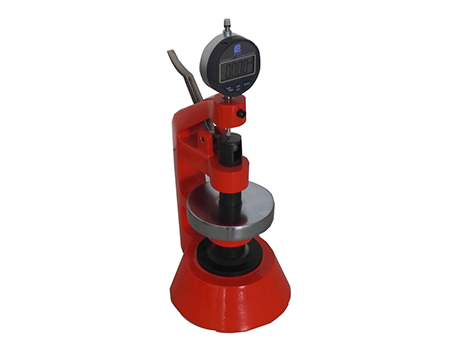

XHV-14A Paper and Corrugated Board Thickness Tester

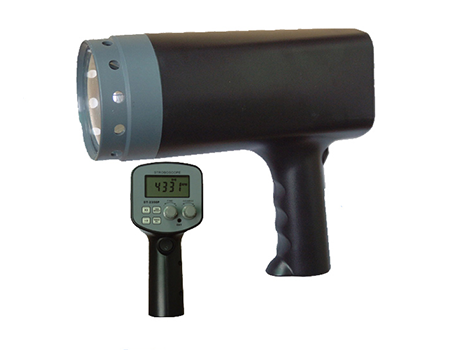

XHV-11 Stroboscope
