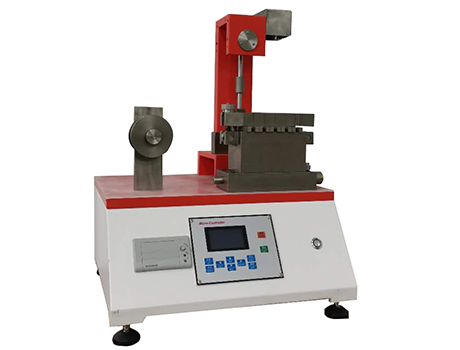

XHV-23 Scott Internal Bond Tester

Product Category：Paper Tester

 Click to find us  Contact us

Product Description

The Scott Internal Bond Tester is mainly used to test the Z-direction tensile strength (ie, the interlayer bonding strength) of paper and paperboard,reflects the ability of paper and board to resist interlayer separation, ie the bond strength of paper and board. Widely used in printing, packaging and other industries.

Test Standards

TAPPI-UM403,TAPPI-T833, TAPPI-T569, ISO16260

Product Features

1. Adopt imported sensor, test is steady and accurate, the test results can compare the test results from the machine from TMI.

2.The magnetic suction structure is used for positioning, the angle reset is accurate and does not drift, the test angle does not need to be adjusted frequently for long-term use.

3. Equipped with horizontal adjustment device, convenient for horizontal adjustment of installation or moving position

Technical Parameter

Sample Size	25.4mm×25.4 mm
Specimen Quantity	5 Groups
Specimen Clamping Force	0-900N
Measurement Range	A grade:(0~500)J/M²; B grade:(500~1000)J/M²
Impact angle	90°
Angle Accuracy	0.01°
Unit	ft.lb/1000.in² , Kg.cm, J/㎡
Resolution	0.1J/㎡
Dimension	700m×350mm×600mm
Weight	80Kgs
