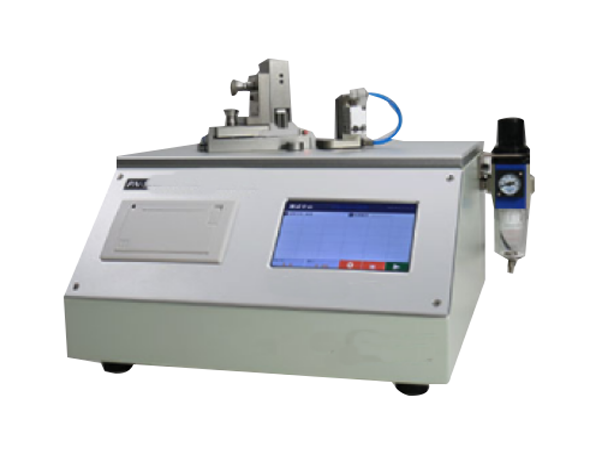

XHV-25AT Pneumatic Paper Stiffness Tester

Product Category：Paper Tester

 Click to find us  Contact us

Product Description

XHV-25AT Paper and Cardboard Stiffness Tester is used to evaluate the stiffness of paper and cardboard

Test Standards

ISO5628, ISO 2493-1, TAPPIT556.

Product Features

Adopt high precision USA Celtron load sensor, the error can be controlled within 1%.

Can preset angle, motor control angle accurately.

7 Inch Color touch screen operation system, Aluminum control panel

Automatic zeroing function.

Thermal printer, fast and clear printing

Statistic Function, can get max, min and average value.

Adopt pneumatic clamping.

Unit can be switched: mN, N.mm, mN.m

Over-protection for load cell

Technical Parameter

Testing Range	1-1000mN
Resolution	1mN
Unit	mN, N.mm, mN.m(taber)
Indication Error	±1%
Testing Time	3-35 s adjustable
Testing Angle	5°-90° (adjustable)
Angle Resolution	0.1°
Clamping	Pneumatic (Air supply 600 kPa)
Load arm length	5, 10, 15, 20, 25, 50 mm (Manual Adjust or Automatic Adjust)
Dimension	18 kg
Power	AC 220V±10%,50HZ
