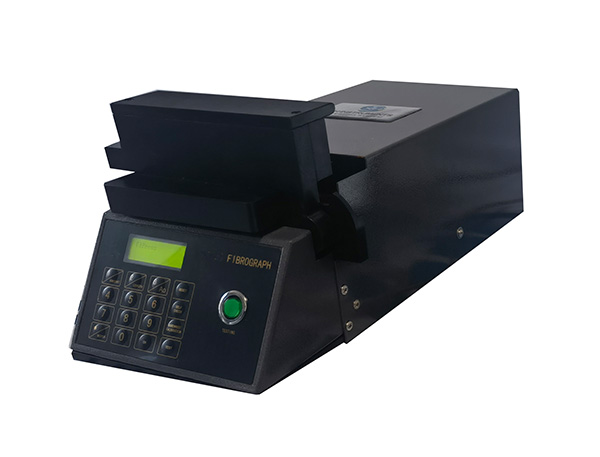

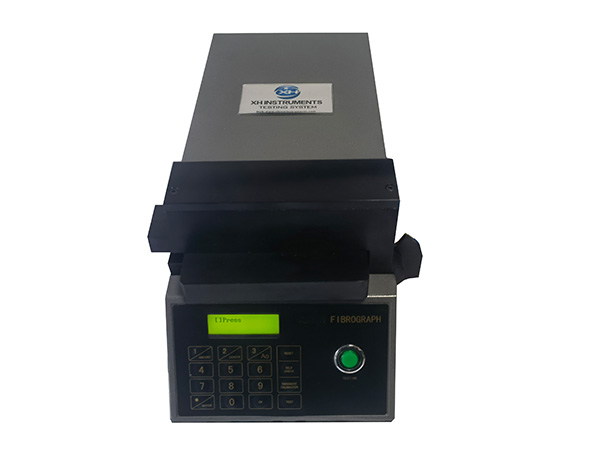

Classifiber is a high-performance and cost-effective cotton fiber-length distribution measure instrument. The instrument’s steady hardware is made up of precision digital circuite module, LCD screen unit and embedded control module. And it’s software provides a friendly operation interface supported by a reliable database.

The Classifiber can primely meet the needs of textile industry field, commercial fiber-checking field and national cotton quality-detecting institutions with the rapid and accurate testing method to determine the upper Half Average Length (HAL), Average Length (AL), short fiber Ratio (SFR) and Regularity Index (RI) of cotton fiber sample.

The Classifiber is based on the random distribution phenomena of cotton fibers exist in nature, and also based on the theory of negative correlation between the fiber number in the “detecting sample cut-plane” and the luminous intensity through this cut-plane.

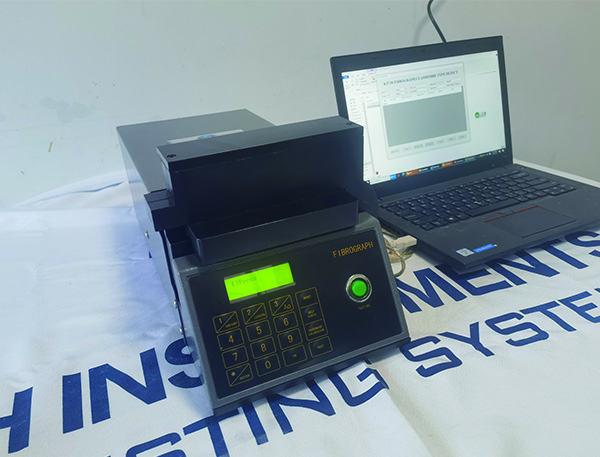

Randomly catch some fibers from cotton band with the special combo as the detected sample, and scan the sample from bottom to top, at the same time record the result of luminous intensity, finally send results to the PC & software, all these steps compose the whole process of instrument operation. The software will process the results data to provide the fibrograph curve and calculate the HAL, AL, SFR and RI of the sample.

1. Fiber Sample Length :      18mm – 50mm

2. HAL Max Error :     0.5mm

3. RI Max Error :      1.5%

4. Fiber Amount in Sample :    550 – 900

5. SFR Index :       only as reference

6. Power Requirements :    AC 220V , 50Hz

7. Dimensions :      500mm × 210mm × 250mm
