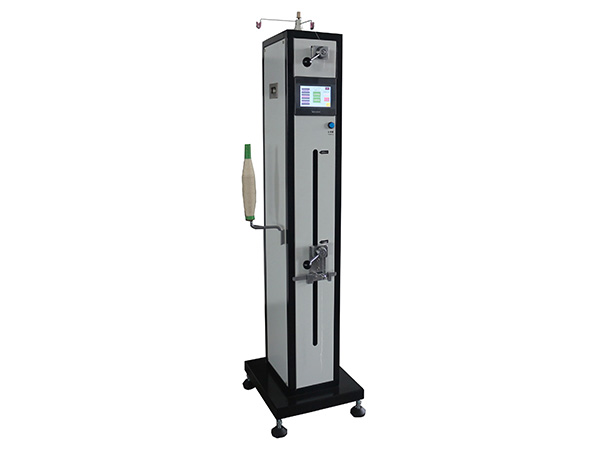

XHL-02C Single Yarn Strength Tester

Product Category：Yarn and Fiber Tester

 Click to find us  Contact us

Product Description

XHL-02C Single Yarn Strength Tester is used to determine the breaking load and elongation of single yarns, core-spun yarn, polyester filament.. etc.

Test Standards

GB/T 391, GB/T 14344, ISO 2062, ATSM D2256, BS 1932, DIN 53842.1, DIN 53835.2...etc.

Product Features

1. Working pattern: CRE principle, controlled by color touch screen.

2. Touch screen can record, browse detail results and print results by printer

3. Fully programmable to give breaking load, elongation, elongation rate, breaking time, CV%, AV.

4. Two methods: constant break time and constant speed test method.

5. With memory function when power interrupt, and up to 100 tests on each sample.

6. The machine adopts contactless relay, stable performance, reliable

7. Gauge length and tension speed pre-settable

8. Able to set pretension force

Technical Parameter

Max Measurement Force	6000CN
Linear Deviation	0.05%
Load Cell Accuracy Class	0.05%
Gauge Length	250mm±1mm,500mm±1mm
Pretension	1cN-100cN
Elongation	when at 250mm gauge length, max elongation is 220% when at 500mm gauge length, max elongation is 60%
Accuracy	Within ±0.5% of applied force
Tensile Speed	20mm/min-1500mm/min
Tex	1-999.9 random setting
Pretension	1cN-100cN
Power	AC220V 50Hz
Dimension	320mm×360mm×1160mm
Weight	45kg
