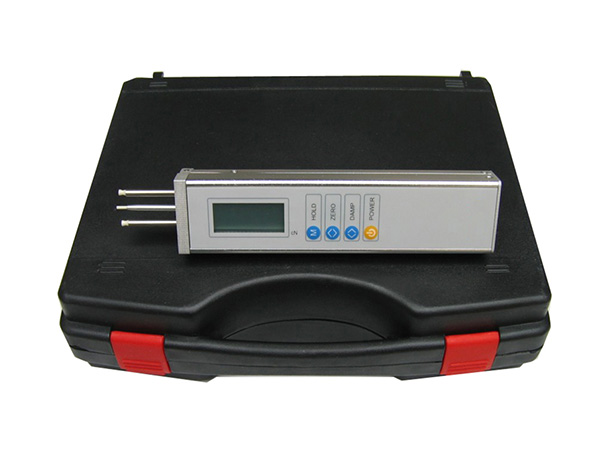

XHX-08 Yarn Tension Meter

Product Category：Yarn and Fiber Tester

 Click to find us  Contact us

Product Description

XHX-08 Electronic Yarn Tension Meters are used throughout the world in a wide variety of typical as well as special applications．A few samples are shown below:

● In the Knitting Industry: exact adjusting of yarn feeders of circular knitting machines.

● In the Man-Made Fiber Industries: For wire drawing or winding machines.

● In the Wire Industries: doubling twister.

● In Cotton Textile Industries: for winding machines.

● In the Optical Fiber Industries: winding machines.

● Ifor testing cooper wire

Technical Parameter

Range :	Range :0-100CN (0-100g), 0-200CN (0-200g), 0-500CN (0-500g), 0-1000CN (0-1000g) (select one)
Resolution :	0.1CN at range 100CN and 200CN, 1CN at range 500CN and 1000CN
Accuracy:	±1% full scale
Units:	cN
Outrange:	approx 10% full scale without accuracy guarantee
Overload protection:	200% of tension range
Measuring principle:	Strain gauge bridge
Signal processing:	Digital 10 bit ADC
Damping:	Adjustable electronic damp (10 steps)．moving averaging
Sampling rate:	approx 1 kHz
Display update rate:	approximate 2 times/sec
Display:	4-digit LCD,12.7 mm high
Temperature range:	10—45℃
Air humidity:	85% RH．Max
Auto power off:	automatically after approx 3 min of non—use
Power supply:	Two AA Battery (about 50 hours of continuous use)
Housing material:	Aluminum profile with outer casing
Housing:	230 X 62 x 46 mm (D x W x H)
Weight net (gross):	approximate 350 g (1020 g)
