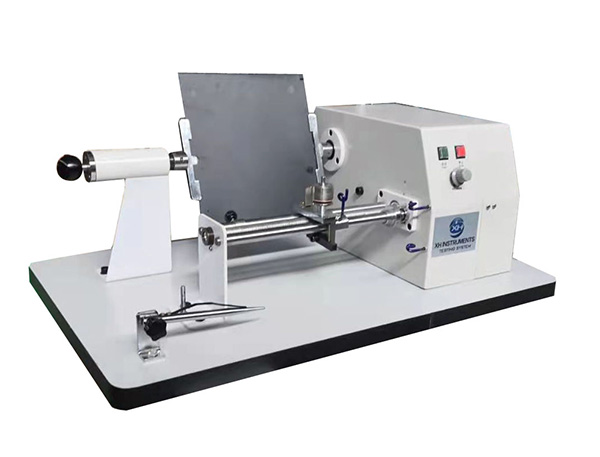

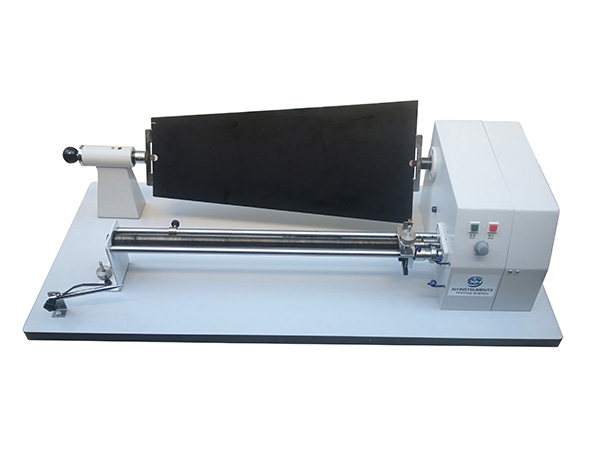

XHX-06 Yarn Examining Machine

Product Category：Yarn and Fiber Tester

 Click to find us  Contact us

Share:   

Product Description

Yarn Examining Machine applies to assess the evenness, hairiness, neps and other imperfections in a representative sample of various yarn wound at a pre-determined yarn density onto a quadrate/tapered black board.

Test Standards

ASTM D2255

Product Features

Driven by synchronous motor, and digital controlling circuit, ensure uniform pitch during

a test.

Various pitch to satisfy comprehensive requirements of different yarn linear density.

Equipped with alternative pre-tension (ref. picture).

Auto-stop function.

Adjustable winding speed.

Technical Parameter

Model	XHX-06A	XHX-06B
Board size	250×220mm	575mm×250mm×160mm×3mm
Reeling density	7, 9, 11, 13, 15, 19 wraps/cm, 20/45mm 7steps
Rotate Speed	0-350r/min
Power supply	AC220V, 50Hz, 50W
Dimension	620×370×340mm	1065mm×460mm×270mm
Weight	20Kgs	30Kgs
