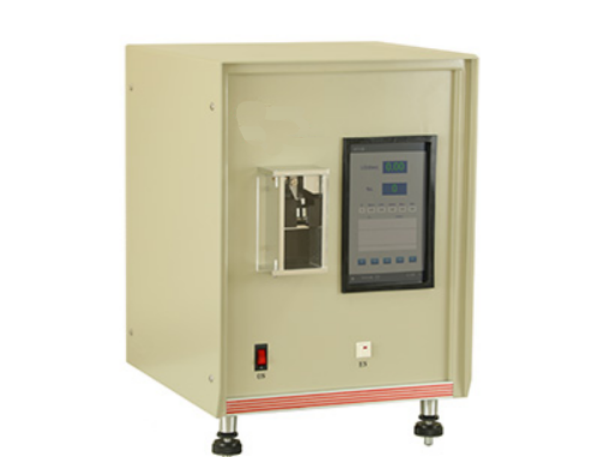

XHX-XD-1N Fiber Linear Density Tester

Product Category：Yarn and Fiber Tester

 Click to find us  Contact us

Product Description

XHX-XD-1N fiber linear density tester has been developed to measure the fiber linear density based on the string vibration principle. It measures and displays the linear density of single tested fiber, and also calculates and displays the mean value, the variation coefficient, the half width, the maximum and the minimum of the linear density. The printer connected with the apparatus prints the measured results when it is needed.

The apparatus is controlled by a microprocessor. It works according to the self-oscillation principle and measures with high precise. It is easily operated and the operating errors can be reduced.

Test Standards

ISO1973, ASTM D1577

Technical Parameter

Linear density measurement range	0.8 - 40 dtex
Linear density error:	<=+/-2%
Vibrating fiber length	20mm
Length error	<=+/-1%
Pretension clamp precision	<=+/-0.5%
Frequency error	<=+/-0.5%
Power	220V+/-10%
Weight	About 10 kg
Size(H×W×D)	490×330×380 (mm)
