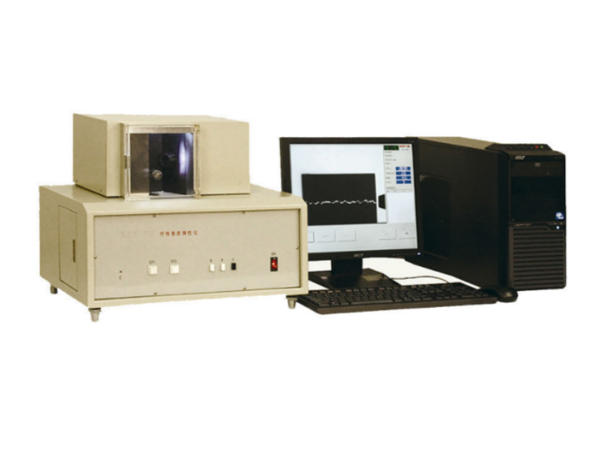

XHX-XCP-1AN Fiber Crimp Elasticity Tester

Product Category：Yarn and Fiber Tester

 Click to find us  Contact us

Share:   

Product Description

The XHX-XCP-1AN Fiber Crimp Tester adopting the digital technology is the latest developed high precision testing apparatus. It uses the image processing method to automatically count the number of crimps of the fiber. In addition, it automatically measures the indices such as the crimp ratio and crimp elastic recovery percentage. The length precision is 0.01 mm.

Technical Parameter

Force measurement range	0-2000 (10-3cN)
Force resolution	0.1 (10-3cN)
Force measurement error	<=+/-1%
Gauge between the upper and the lower clamp	20mm+/-1 0.02mm
Light load	0-99（10-3cN）
Heavy load	0-2000（10-3cN）
Lower grip moving range	40mm
Length Resolution	0.01mm
Length measurement error	<=0.05mm
Time set	Auto
Count the number of crimps	Auto
Length of the fiber within which the number of crimps is counted	25mm
Power Supply	220V±10%, 50Hz
Dimension	510×340×420 mm
Weight	20Kgs
