XHX-369 Fiber Thermal Shrinkage Tester

Product Category：Yarn and Fiber Tester

 Click to find us  Contact us

Share:   

Product Description

Fiber thermal shrinkage tester is a special instrument for testing the thermal shrinkage rate of chemical fiber。The detection process is performed in accordance with the FZ T 50004-1991 standard .

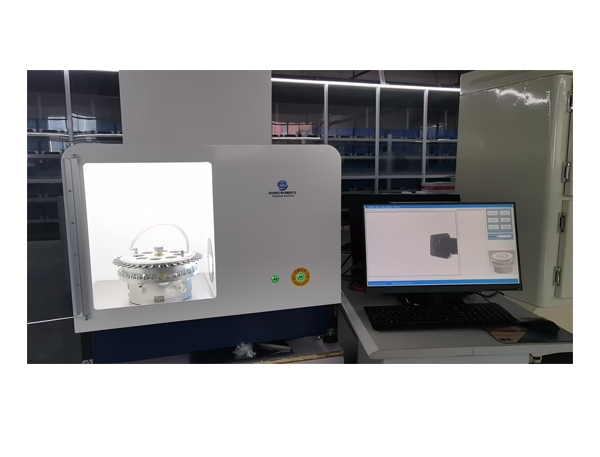

The machine consists of Fiber measuring platform, Fiber sample rotating cage, Optical length measuring device, Computer system, etc. It provides functions such as length measurement before heating, length measurement after heating, and generate test report.

Test Standards

FZ T 50004-1991

Technical Parameter

Thermal shrinkage measurement range	0-45%
Thermal shrinkage measurement error	+/-0.1%
Sample holder spacing	20mm+/-1mm
Fiber sample rotating cage	Up to 36 samples can be hung,numbered clockwise
Power Supply	AC220V±10%, 2.5KW
