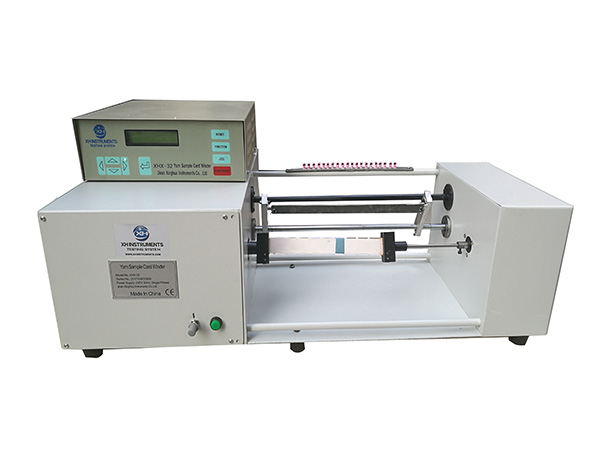

XHX-32 Yarn Sample Card Winder

Product Category：Yarn and Fiber Tester

 Click to find us  Contact us

Product Description

Yarn Samples Card Winder is used for winding the yarn, various synthesize materials and other material of suit to wind etc., on to a paper tape. This product is newest design for winding various samples cards. yarn winding card is especially suitable for domain listed below: Sample cards, whiteness test, ultraviolet ray resist testing, sample standardization, color compare, color chart etc.

Test Standards

1. It is suitable for all cards in the market.

2. The machine control system adopt 16 bit micro controller.

3. Winding adopt high resolution stepper drive pulse.

4. LCD display with backlight, spindle adopt frequency conversion technology.

Technical Parameter

Suitable Yarn Diameter:	0.03-1.5mm
Winding Width (color width)	0-80mm
Winding Length (paper board length)	≤300mm
Max winding colors	1-20 types
Winding repeatablity according at the initial position	≤0.2mm
Braking accuracy	≤0.02mm
Storage modes	≤6 groups
Speed	0-1100rpm
Power Supply	AC 110V/220V, 50Hz/60Hz
