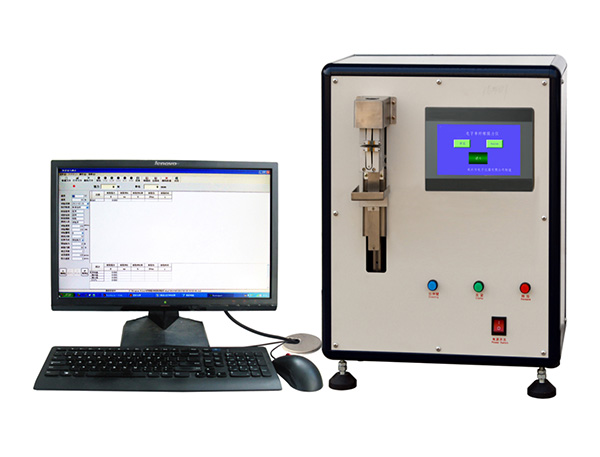

XHL-02FE Fiber Strength Tester

Product Category：Yarn and Fiber Tester

 Click to find us  Contact us

Product Description

The Fiber Strength Tester is suitable to test the tension of chemical fiber cotton, wool, ramie,silk, glass fiber...etc.

Test Standards

ISO 11566, ISO 5709, JIS K1474, JIS R7601, JIS K1477, ASTM D3822, BS 4029, BS 3411

Product Features

Touch screen control and computer control, real time display testing results, print results directly via printer or generate word, excel detail report via PC.

Select imported load cell from USA, CRE test principle, high speed sampling.

It can real time display curve, tensile strength, break tenacity, elongation, yield force, yield elongation, modulus, various CV value...etc.

High accuracy, fats response.

Pneumatic gripper can clamp sample without any damage and slippage.

8 test function built in the program

Technical Parameter

Range	0-500cN
Force measurement accuracy	<±0.5%
Gauge length	5-60mm (random setting
Max Stoke	120mm (when gauge length 10mm)
Extension measurement error	≤0.05mm
Test speed	3-200mm/min
Pretension setting range	0.00cN-99.99cN
Pretension resolution	0.01CN
Working pressure	0.4-0.6Mpa
Dimension	400mm×290mm×460mm
Net weight	25Kgs
Power supply	AC 220V±10% 50Hz
