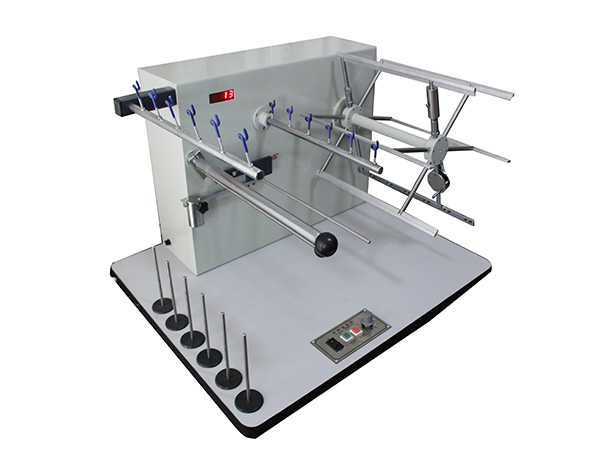

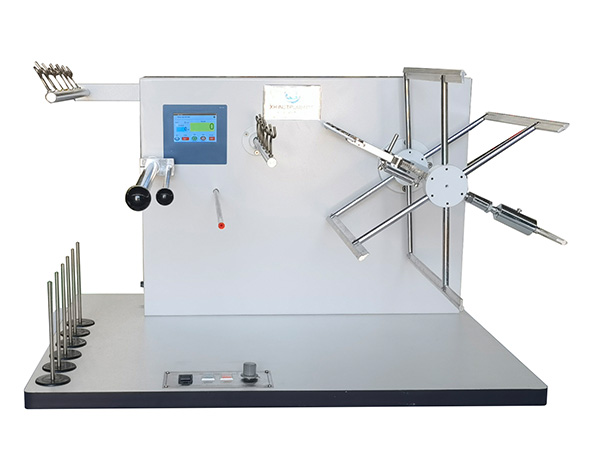

XHX-04 Electronic Wrap Reel Tester

Product Category：Yarn and Fiber Tester

 Click to find us  Contact us

Share:   

Product Description

Wrap Reel Tester complete with yarn package stand and pre-tension device, fitted with pre-determined counter. Wrap reel complete with yarn package stand and pre-tension device, fitted with pre-determined counter.

Test Standards

GB/T4743, GB/T14343, GB/T6838, ISO2060, ASTM D1907, DIN53830.3.4

Product Features

Random adjust speed by knob.

Have speed tracking function.

Program stop , do not break yarn and accuracy.

Automatic stop when reach preset testing times.

Technical Parameter

Model	XHX-04A	XHX-04B
Display	Digital	Touch Screen
Reel Circumference	1000mm
Preset Testing Times	1-9999
Reeling Speed	30-300 rpm
Reeling Pre-tension	0-100 cN (Mechanical)		0-100cN (Digital)
Reeling Reciprocate Range	35mm
Interval of spindle	65mm
Bobbin number	6
Dimensions	780×660×480mm
Power supply	110V/220V, 50/60Hz
