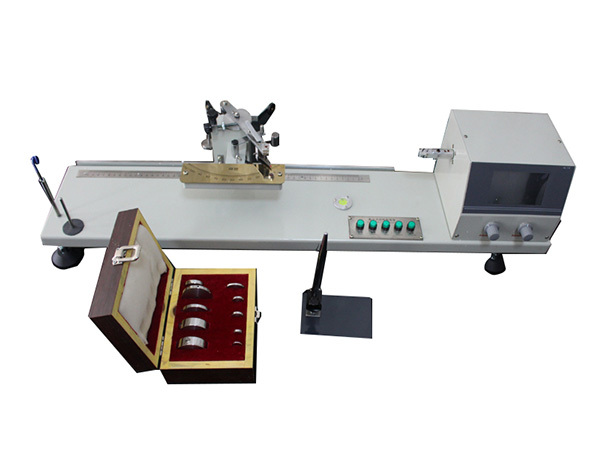

XHX-05 Electronic Yarn Twist Tester

Product Category：Yarn and Fiber Tester

 Click to find us  Contact us

Product Description

XHX-05 Electronic Yarn Twist Tester is used to determine yarn twist in single or plated yarns ,quadrant type with auto stop &reverse for convetional or untwist/re-twist methods . with S&Z indicator.

Test Standards

ISO2061; Bs2085; ASTM D1422,1423; JIS L1095

Product Features

Controlled by microcomputer , displayed by touch screen , stepless variable speed . Adjustable yarn tension using set of weights, Adjustable yarn bobbin stand, Statistics function (mean value, min value, max value, CV%, standard variation). Has RS 232 interface to connect to PC.

Technical Parameter

Test Method	F0: Direct counting method
	F1: Untwist/re-twist method
	F2: Double untwist-retwist method
	F3: Three times of untwist/re-twist method
Testing length	10-500 mm (settable)
Testing Speed	100-2000r/min, stepless adjustable
Jog Speed	100-2000r/min, stepless adjustable
Testing Range	1-5000 Twist
Linear Density	1-499.9 Tex
Dimension	890mm×290mm×215mm
Weight	15Kgs
Power supply	AC220V±10% 50Hz
