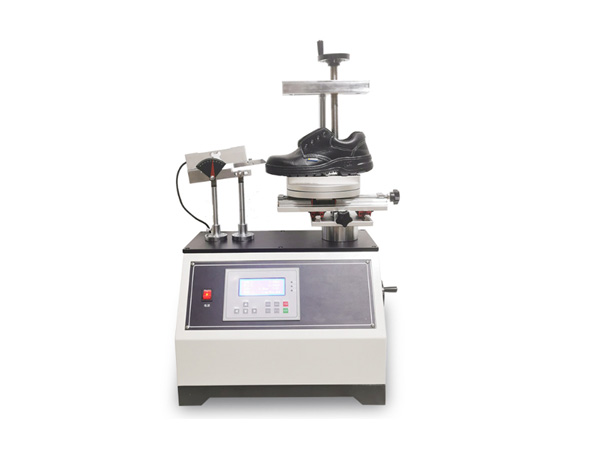

XHF-95 Shoe Peeling Strength Tester

Product Category：Leather and Footwear Tester

 Click to find us  Contact us

Product Description

Shoes Peeling Strength Tester price is used to determine the peeling strength between the sole and upper of a shoe.by peeling blade,peel the upper of the shoe from its sole to get the peeling force,then based on the blade's width to calculate its peeling strength.

Test Standards

SATRA TM 404, ISO 20344

Product Features

LED-SLD806 integrated display control box, menu operation mode

Mechanical parts are made of non-corrosive structural aluminum and stainless steel materials

Clamp distance is adjustable, 360 degree for different size shoes.

Alloy steel sensor, high precision, stable and durable

Technical Parameter

Max Peeling Strength	1000N
Peeling cutter`s width	20±0.2mm and 10±0.1mm
Peeling cutter`s moving down speed	20±2mm/min, up and down speed can be adjustable
The distance between the locating road and pulling road	50-70mm adjustable
Dial Gauge	0-10mm, 0.001mm
Elevating range	40mm
Dimension	560×320×750 mm
Weight	45Kgs
Power Supply	AC 220V±10%, 50Hz/60Hz
