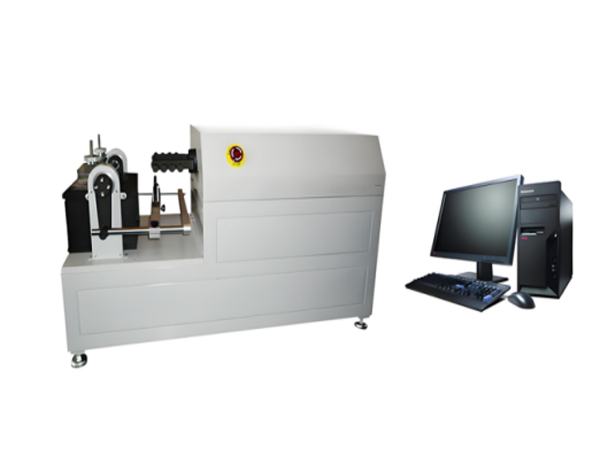

XHF-156 Shoe Torsional and Longitudinal Stiffness Tester

Product Category：Leather and Footwear Tester

 Click to find us  Contact us

Product Description

XHF-156 Shoe Torsional and Longitudinal Stiffness Tester is specifically designed to determine the torsional stiffness and longitudinal stiffness of shoes.

While the specimen is securely clamped in place on a platform, the torsion device twists it at a constant speed. Once a specific angle is reached, the applied torque is measured

Test Standards

SATRA TM 256

Technical Parameter

Torsional stiffness test	Capacity	50N．m
	Load minimum reading	0.1N．M
	Test angle	Max. angle: 10±0.5°
	Timer minimum reading	0.5 s
Longitudinal stiffness test	Test speed	0.5±0.1 Hz
	Grip diameter	6±0.05 mm
	Flexing position	One-third of the total length of shoe
	Capacity	200 N
	Max. flexing angle	50±2°
Operating system		PC based dedicated software
Dimension		100×40×54 cm
Power Supply		220V 60Hz 300W 1 PH
