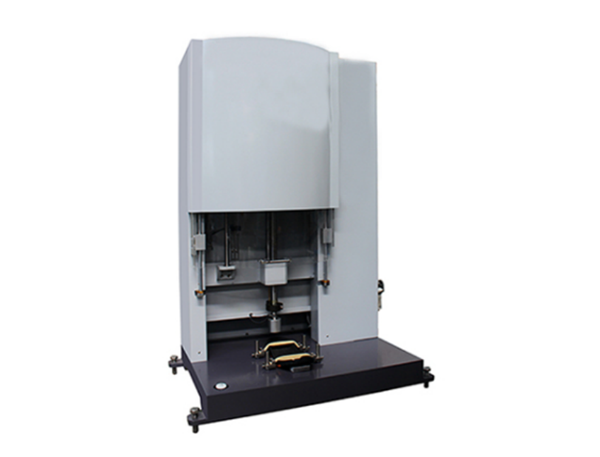

XHF-125 Shock Absorption Tester

Product Category：Leather and Footwear Tester

 Click to find us  Contact us

Product Description

An impact striker of fixed mass, with a domed lower surface, is dropped vertically from a predetermined height onto a test specimen. During impact the maximum deceleration of the striker and indentation of the material are recorded. The lower the maximum deceleration, the better the shock absorption properties of the material. The height of the first rebound of the striker is also measured and the energy return calculated

Test Standards

SATRA TM 142

Product Features

The machine is controlled by PC, can real time display graph and get detail results such as FM, DM, UM, UF, TM, PM, eM, HER, Sm, G, Energy rebound%,deceleration

Technical Parameter

Falling Mass	8.5kg (5J), 11..9kg (7J)
Impactor	R=1.0±0.25mm, Diameter: 45mm, Weight<0.2kg.
Test Height	50mm (adjustable)
Test Speed	2+1 S each period
Load	20KN, acquisition frequency>1000Hz
Displacement Sensor	0-150mm, acquisition frequency>1000Hz
Weight	400Kgs
Power Supply	220V, 50Hz
