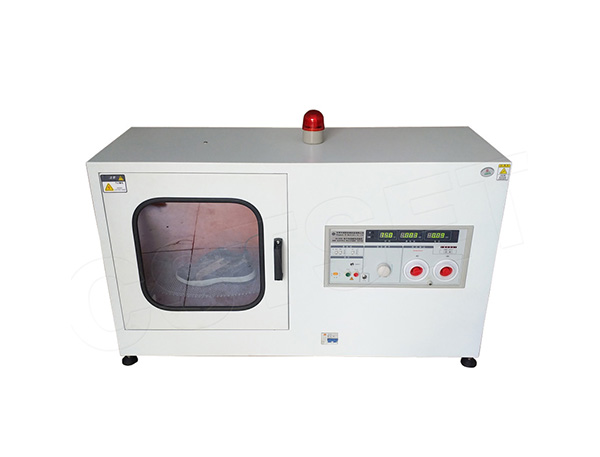

XHF-101 Shoe Dielectric Resistance Tester
Product Category：Leather and Footwear Tester
Shoes Dielectric ResistanceTester /Shoes Insulation Tester / Shoes Voltage Resistance Tester is to test if shoe soles or insulation materials can withstand voltage value, in order to understand the extent of its withstand voltage.
Mechanical parts are composed of non-corrosive structures and insulating materials.
Equipped with standard stainless steel beads, not easy to rust.
One-button automatic test, easy to operate.
LCD display, breakdown alarm function.
Built-in insulating material to protect the operating edge and make safe when mis-operation.
Leakage Current | 0-10mA can be set arbitrarily |
Output voltage range | AC: 0~20KV can be set arbitrarily |
Test time | 0s-99s can be set arbitrarily |
Power supply | AC 110V/220V 50/60HZ |
Dimensions | 1150mmx460mmx800mm |
Weight(Approx) | 70kg |
