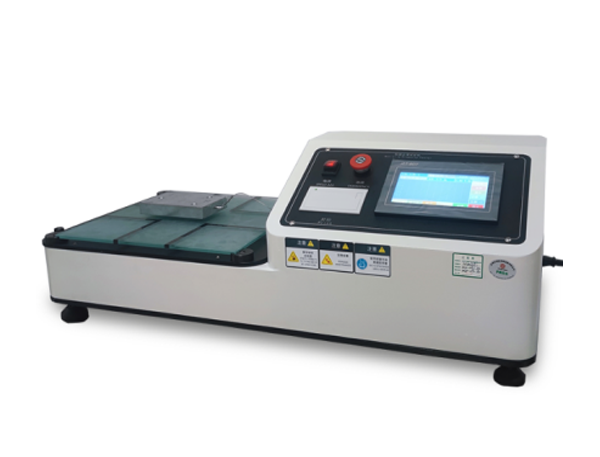

XHF-152B Skid Tester

Product Category:Leather and Footwear Tester

Share:

Product Description

This instrument uses the maximum pulling force value generated by horizontally pulling a standard test piece with a certain load specification to calculate the maximum static anti-slip coefficient of the sample to determine the anti-slip performance of the sole material. This instrument can test finished shoes and the entire sole. and test pieces.



Purpose:

Test method for static anti-skid performance of footwear, testing the static anti-skid performance of soles, heels or similar materials.


Test Standards

ASTM F609


Technical Parameter

Weight

2700g±34g

Maximum Range

200N

Measurement Accuracy

±0.05N

Test Speed

0-500mm/min

Friction Medium

The friction panel is float frosted glass with a thickness of (8.0±0.2) mm and a mirror gloss of 4, and its area is not less than 380 mm×380 mm.

Test Piece Size

12.7±0.2mm and 70±0.2×45±0.2mm

Sample Thickness

7mm

Accuracy

±1%

Maximum Displacement

>300mm

Dimension

76cmx42cmx39cm

Weight

65kg

Power Supply

AC220V, 10A.
