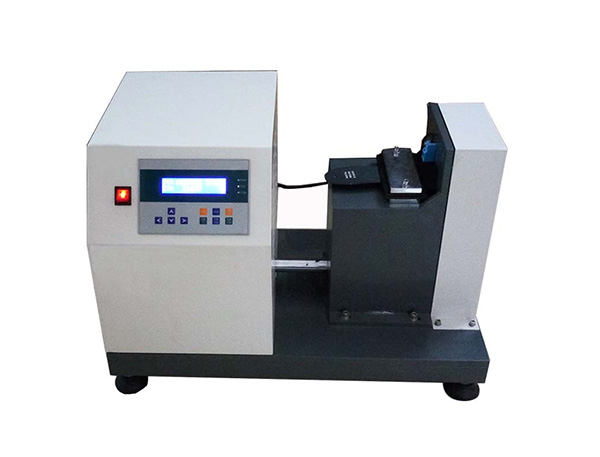

XHF-100 Penetration-Resistant Inserts Flexing Tester

Product Category：Leather and Footwear Tester

 Click to find us  Contact us

Product Description

Penetration-Resistant Inserts Flexing Tester is used to determine the flex resistance of penetration-resistant inserts for safety shoes.

Test Standards

ISO EN20344-2011, EN12568, ISO 22568-3:2019, 5.2, ISO 22568-4:2021, 5.2

Product Features

LED-SLD806 integrated display control box, menu operation mode

One key automatic test, operation is easy.

Mechanical parts are made of non-corrosive structural and stainless steel materials

Automatic stop when specimen is broken.

Imported high-precision bearings are used for smooth and stable rotation and long active life.

Technical Parameter

Distance from the clamping plates	70±1mm
Bending Stoke	33±0.5mm
Testing Speed	16±1Hz (960±60cpm)
Testing Times	LCD 0-9999999
Dimension	650mmx400mmx450mm
Weight	85Kgs
Power Supply	AC 220±10%, 50Hz/ 60Hz
