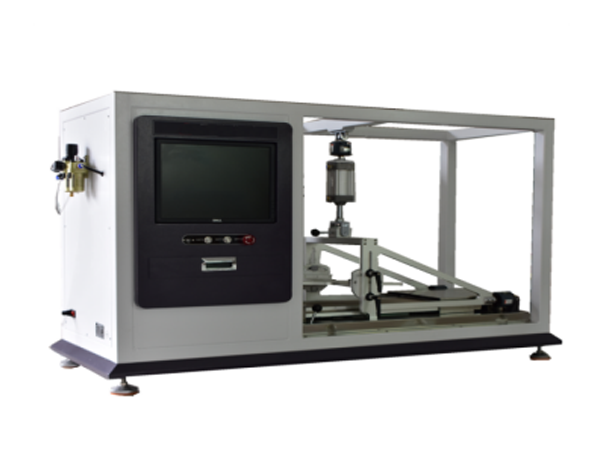

XHF-152A Slip Resistance Tester
Product Category:Leather and Footwear Tester
Apply a predetermined load by different mediums like wood, PVC, ceramic tile or specified and set specified friction times and speed, which is to measure the sole friction coefficient, and then judge the slip resistance of shoes.
Principle
Place specimen on test stand, and glycerin as a lubricant, exert a certain load, and move test bench in horizontal direction compared with sample by lateral traction forces, to measure dynamic friction and calculate kinetic coefficient of friction.
GB 21148-2020 ISO 20345-2011 GB/T28287,EN ISO13287,SATRA TM144, ASTM F2913,GB/T3903.6-2017, EN 13634
Test Items:
Forward heel slip
Backward forepart slip
Forward flat slip
Vertical Load Range | 0-1000N |
Horizontal Load Range | 0-1000N |
Testing Speed | (0-1.5±10%)m/s adjustable |
Stroke of Movement Plate | 0-200mm |
Testing Speed Accuracy | ±1% |
Static Contact Time | 0-5S adjustable |
Shoe Last Fixing Fixture | 0-30° |
Load Cell | Vertical 1KN (USA Transcell Brand) |
Horizontal 2KN (USA Transcell Brand) | |
Horizontal Tension Force Accuracy | ±0.5% |
Vertical Compression Force Accuracy | ±0.5% |
Vertical Compression Force Control Time | 0-Preset value, less than 0.2 seconds |
Reducer | Ratio: 1:15, low noise during running |
Adopting precision linear guide rail | |
Taiwan researches new high-end brake clutches; After the testing program is ready, the motor needs to maintain real-time operation to reach the predetermined speed state. By switching the clutch, the entire sliding distance should be kept at a constant speed | |
Transmission synchronous belt | Korea Samsung |
Displacement Sensor | Resolution :0.001mm |
Working Table | 600x320mm (Stainless Steel) |
Control Motor | Japan Servo Panasonic |
Pressure System | Adopting Japanese SMC proportional valve control, computer setting, automatic pressurization |
Control System+ Software | High speed acquisition system and dedicated testing software, built in EN 13287, SATRM 144, ASTM F2913, GB/T3903.6, ISO 20345, EN 13634 |
Protection | Pressure overload protection, air buffer travel limit protection. Emergency stop switch protection |
Wedge Angle Gauge | 7° |
Compressed Air | Min 6 Bar (with Pneumatic spray gun for cleaning), customer prepare compressed air |
Control | Built- In Industrial Computer with English Operation System |
Power Supply | 220V, 50Hz, Single Phase |
Motor Power | 0.55KW |
Dimension | 1680mmx700mmx100mm |
Weight | 300Kgs |
Power Supply | AC 220V 50Hz 1500W |
