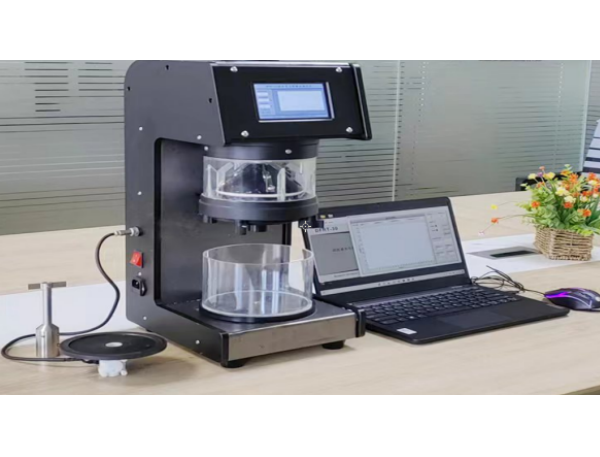

XHV-56 Dewatering and Retention Machine

Product Category:Pulp Tester

Share:

Product Description

During sample preparation, the suspension is poured into a container, additives are added, and the stirrer rotates to generate shear force. To measure water filtration, the suspension is filtered through a sieve and its filtrate volume is weighed and recorded over time. DDA software provides flexible analysis of the final results



All these parameters ultimately determine the operational performance of the paper machine and the final quality of the paper pages. In order to optimize the process of water filtration and retention, it is necessary to conduct a systematic analysis of these interactions.


Product Features

1. The setting function of filtering time and volume, and the measurement process is fully automatic.

2. Easy to operate and reduce operational errors.

3. Result saving function, Excel report automatic generation function.


Technical Parameter

Balance Range

0-2Kgs (0-2000ml)

Balance Measurement Accuracy

0.1g (0.1ml)

Stirring Speed

200-1400RPM adjustable

Sample Temperature

+5℃- +70℃

Data Acquisition

USB

Data Display

Water Filtration Time (s), Water Filtration Volume (ml), Average Speed (ml/s), automatic draw graph of volume vs time

Graphs Analysis

Can analyze 5 groups at  the same time

Filter Sieve

Mesh 18, 24, 40, 50, 60, 100, 150, 200 etc
