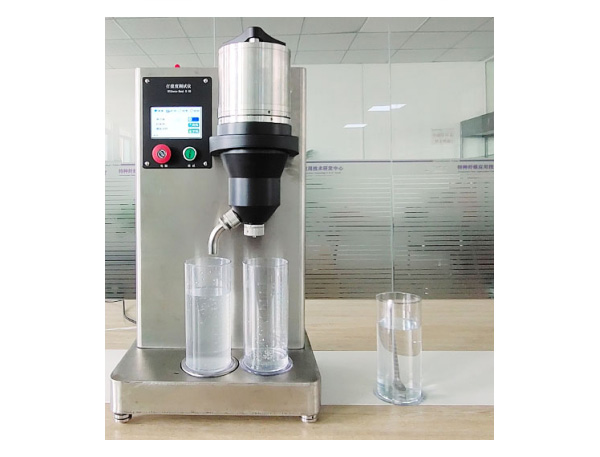

XHV-18C Standard Vertical Pulp Disintegrator

Product Category：Pulp Tester

 Click to find us  Contact us

Product Description

XHV-18 type vertical Standard Pulp Disintegrator,Another name is standard fiber dissociation or Standard fiber blender,Pulp fiber raw material at high speed in the water,Bundle fiber dissociation of single fiber.It is used to makeing sheethand,measure filter degree,The preparation for pulp screening.

Test Standards

JIS P8220,TAPPI T205,ISO 5263.

Product Features

Structural features:This machine is of vertical construction.The container uses the transparent material toughness.The equipment is equipped with RPM control instrument.

Technical Parameter

Container	Φ(152±2) mm×H(191±2)mm
Pulp Concentration	0.8% or 1.2% or 2.2%k
Container Volume	About 3 L
Driven Structure	The bearing adopts a double-layer structure with a waterproof layer
Bearing Protection	Transmission shaft with isolation film
Wastewater Recycling Chamber	Equipped with a wastewater recycling box, it can quickly transfer wastewater
Motor Protection	Equip with protection cover
Pulp Base Plate	06Cr19Ni10 Anti Rust
Impeller Rotation Frequency	(48.3±1.65)S- 1
Rotate speed	(2898-2994) r/min
Rotation Radius	φ90
Standard of revolution	0-999999r (can self set)
Dimension	450×265×395mm
Weight	42Kg
