XHV-36 Somerville Shive Content Analyzer

Product Category：Pulp Tester

 Click to find us  Contact us

Share:   

Product Description

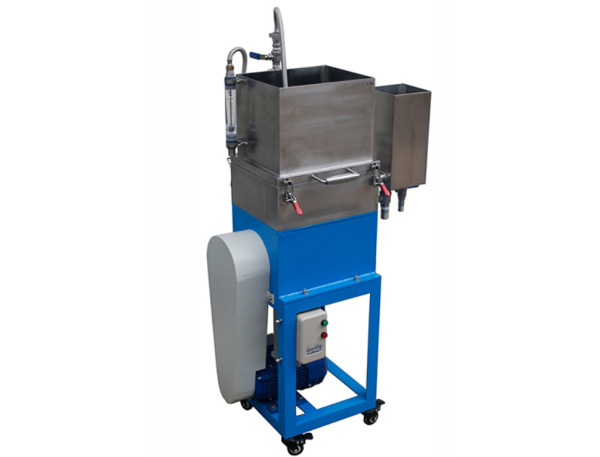

The Somerville shive content analyzer is built upon a robust stainless steel frame, which holds the membrane chamber and the container. The control box can be mounted to a wall. The wash chamber and the container are separated by an exchangeable slot plate, which holds one calibrated ring nozzle with twelve horizontal openings right in the center of the slot plate. The attached overflow container regulates the water level in the container. The slot plate can be easily removed due to quick fasteners.

Test Standards

TAPPI 275

Technical Parameter

Screen Plate	307mm×268mm
Slits	Length: 45mm, Width: 0.15mm
Quantity of Slits	126×6=756
Motor Power	1.1KW 380V
Rubber Diaphram and Driven	Amplitude：3.2 ±0.1mm Eccentric Runs at 690-700 rpm
Flow	8.6 L / min
Pressure	1.23 Kg/cm2.
Dimension	700mmx400mmx1100mm
Standard Configuration	Machine with 0.15mm slits plate
Optional Configuration	0.2mm, 0.3mm, 0.35mm, 0.4mm
