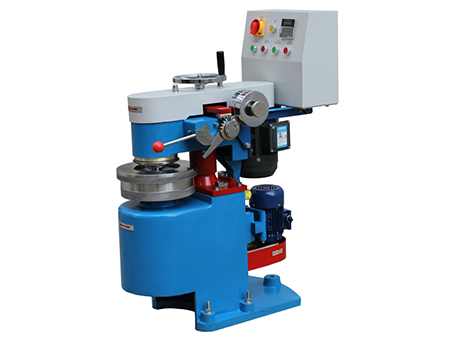

XHV-16 PFI Pulp Beater

Product Category：Pulp Tester

 Click to find us  Contact us

Share:   

Product Description

The XHV-16 PFI Pulp Beater is used in the pulping papermaking experiment and to provide specimen for the determinations of paper pulp beating degree, paper pulp specimen moisture content, paper pulp density, the wet degree of dissociation, and the degree of ionization. It conforms to the experimental standard defined in ISO 5264/2-1979 “Paper Pulp Laboratory Beating-Part I: PFI Mill Method”and is applicablefor all types of paperpulpsin principle.

Test Standards

ISO 5264/2

Technical Parameter

Stuff Chest	Inside diameter Φ250mm, Depth 53mm, rotational speed 620r/m
Fly Cutter Rotor	Outer diameter Φ200mm,height 50mm, cutter thickness 5mm, rotational speed1460r/m
.Adjustment Distance of Beating Gap	0-25mm
Motor for the Stuff Chest	370W/380V,1400n/m
Counter Display Control Scope	Counter Display Control Scope
Beating Pressure	(3.33±0.1) N/mm knife length
	(1.77±0.1) N/mm knife length
	(4.89±0.1) N/mm knife length
Beating Paper Pulp Density	5-20%, bonedrypulp 5-30g
External Dimensions	860mm×450mm×1100mm
Weight	250Kgs
