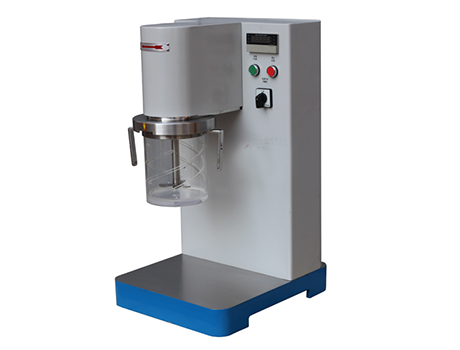

XHV-18A Vertical Standard Pulp Disintegrator

Product Category：Pulp Tester

 Click to find us  Contact us

Share:   

Product Description

XHV-18 Vertical Standard Pulp Disintegrator, Another name is standard fiber dissociation or Standard fiber blender,Pulp fiber raw material at high speed in the water,Bundle fiber dissociation of single fiber.It is used to makeing sheethand,measure filter degree,The preparation for pulp screening.

Test Standards

JIS-P8220,TAPPI-T205,ISO-5263

Technical Parameter

Pulp	24g oven dry stock, 1.2% concentration,2000ml pulp
Volume	3.46L
Pulp volume	2000ml
Propeller	φ90mm,R gauge blade conform to the standards
Rotate speed	3000r/min±5r/min
Standard of revolution	50000r (can self set)
Dimension	W270×D520×H720mm
Weight	50Kg
