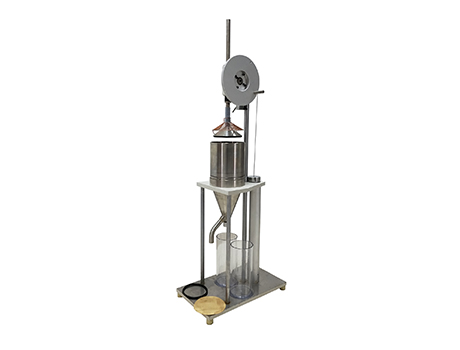

XHV-15A Schopper Beating Freeness Tester

Product Category：Pulp Tester

 Click to find us  Contact us

Share:   

Product Description

Pulp Beating Freeness Tester is designed to determine the rate of drainage of a dilute pulp suspension and express it in terms of the Schopper-Riegler(SR) value. The tester obeys the related prescriptions mentioned in ISO 5267/1 and GB3332.

The Schopper-Riegler test is designed to provide a measure of the rate at which a dilute suspension of pulp may be dewatered. It has been shown that the drainability is related to the surface conditions and swelling of the fibre, and constitutes a useful index of the amount of mechanical treatment to which the pulp has been subjected.

Test Standards

ISO 5267-1, GB3332

Technical Parameter

Measuring range	0-100 °SR
The division value of the reading measuring cylinder	1°SR
Draining time for the outgat	(149+/-1)s
Residual volume	(7.5-8)ml
Dimension	250mmx450mmx1180mm
Weight	40kgs
