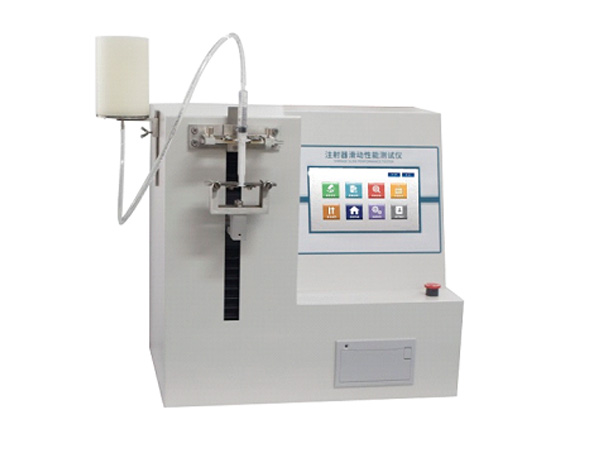

XHD-13 Piston Movement Force Tester

Product Category：Pharmaceutical Testing Equipments

 Click to find us  Contact us

Product Description

Piston Movement Force Tester is used to expel water from a syringe and simultaneously record the froce required to move the piston

Test Standards

ISO 7886-1 (Annex E), ISO8537-2016

Product Features

The tester adopts 7-inch professional color touch screen.

Chinese and English menu display: real-time display of the starting force, average force, maximum push-back force, minimum push-back force, and core rod movement and force records.

The intelligent controller selects the nominal capacity of the syringe, automatically judges the test results, and prints the test results by the airborne printer.

Technical Parameter

Item	Parameter
Force range	0N-100N
Accuracy	Error fullness value ±1%
Test speed	100±5mm/min
Litre capacity	0.1mL-100mL. Arbitrary choice
Test time	30±1s（Waiting time from the end of tensile test to the beginning of thrust test）
Size	400mm(L)×290mm(W)×275mm(H)
Net weight	15kg
