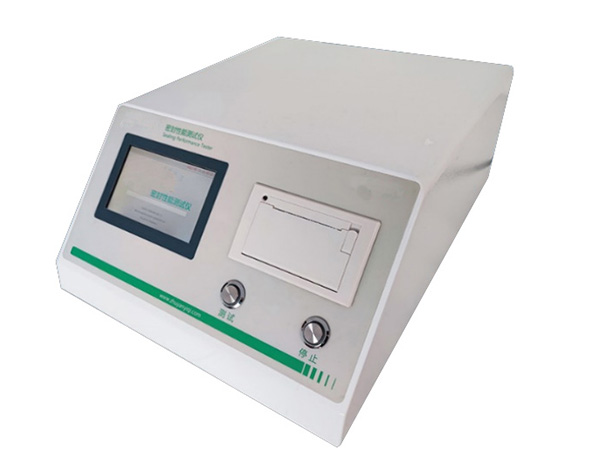

XHD-11 Air Leakage Tester

Product Category：Pharmaceutical Testing Equipments

 Click to find us  Contact us

Product Description

Air Leakage Tester is suitable for testing the tightness of syringe body. It is one of the important means to identify medical syringes.

Test Standards

ISO 7886-1 (Annex B), ISO 8537-2016

Product Features

The tester adopts 5-inch professional color LCD screen.

Automatic test, with printer.

Chinese and English menu display: real time display of various parameters.

The negative pressure of the measuring system will not drift within 1 minute , and the test results will be printed out by the airborne printer.

Technical Parameter

Item	Parameter
Negative pressure output	-88Kpa±0.3Kpa
Drift within 1 minute	≤±1Kpa
Test range	0Kpa--90Kpa. Adjustable
Test time	1S-600s. Arbitrary setting, the error is not more than 0.1s
Power supply	AC220V，50Hz
Size	320mm(L)×420mm(W)×170mm(H)
Net weight	8kg
