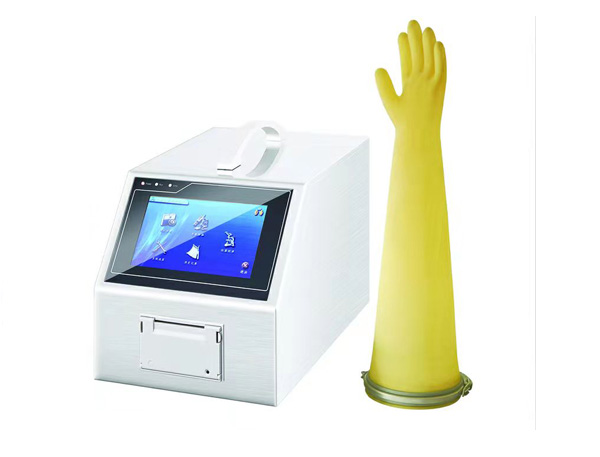

XHD-04A Glove integrity tester
Product Category:Pharmaceutical Testing Equipments
The Off-line Gloves Integrity Tester is designed according to the positive pressure leak detector principle proposed by GB/T 25915.7-2010/ISO 14644-7:2004, and it is a dedicated instrument to detect the gloves leakage. The simple and easy design won't need any additional equipment, no need to remove the gloves, with fast detection speed and high precision.
GB/T 25915.7-2010, ISO 14644-7:2004
※ The instrument adopts a small amount of frequent air inlet mode, with uniform inlet velocity in gloves, to avoid gloves deformation.
※ It is equipped with color touch screen and humanized interface design, according to different test parameters, for automatic selection and matching, which can be most adaptive to the current gloves test procedure, date and time display;
※ The authority management and electronic signature design is in line with the 21 CFR part 11 for certification requirements of electronic records and electronic signature;
※ It is convenient to move, easy to carry and quick to connect;
※ Historical records can be used for print, storage and query.
Working power supply | AC 100-260V 50Hz |
Rated power | 120W |
Testing duration | 2-8min |
Pressure range | 500-5000Pa |
Response value | ≤ 50Pa |
Noise | ≤ 50dB(A) |
Working mode | Continuous work |
External gas source | Compressed air, nitrogen, inert gas |
Sealing pressure | ≤ 0.8Mpa |
other function | Audit trail ,data export by USB (customization) |
Historical record | 10000 groups |
Print Function | Built-in Printer |
Overall dimensions | 400*260*270*250mm |
Weight | 7.5KG |
Audit trail | Custom-made |
Audit trail storage(customization) | ≥ 5 years |
