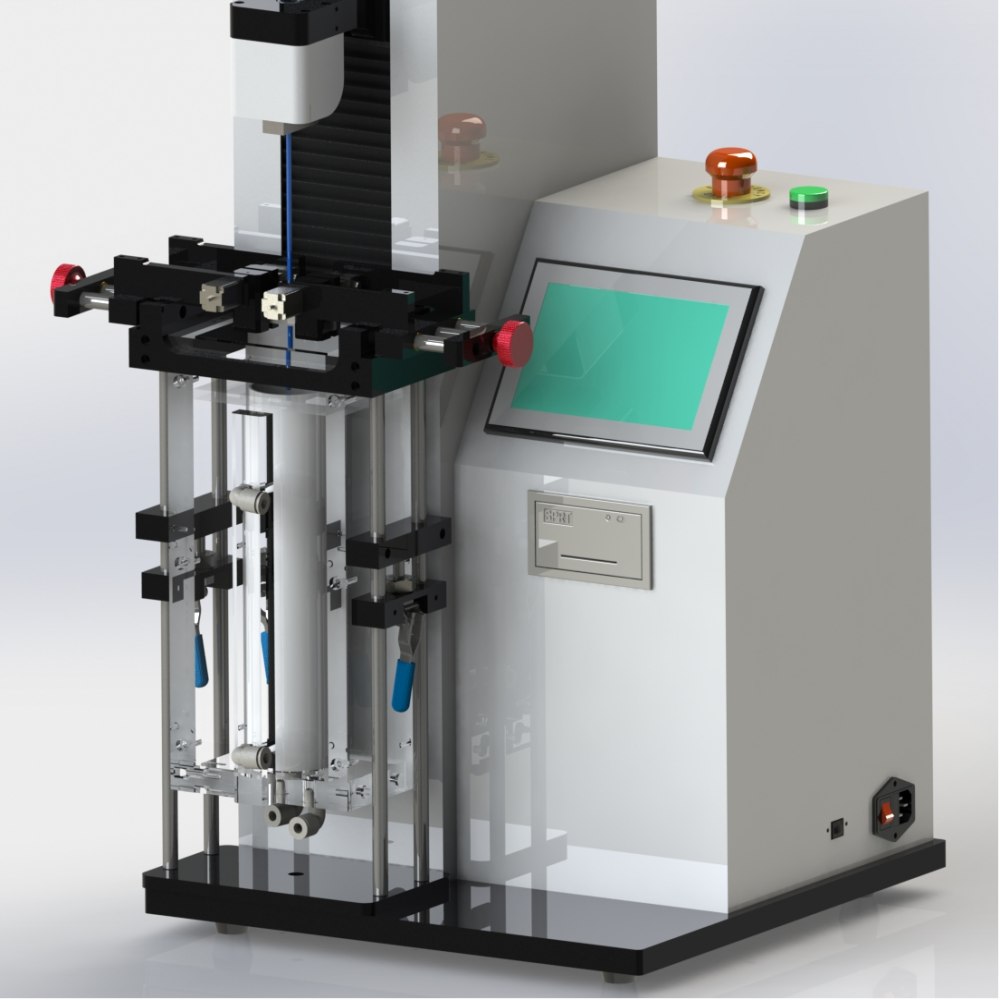

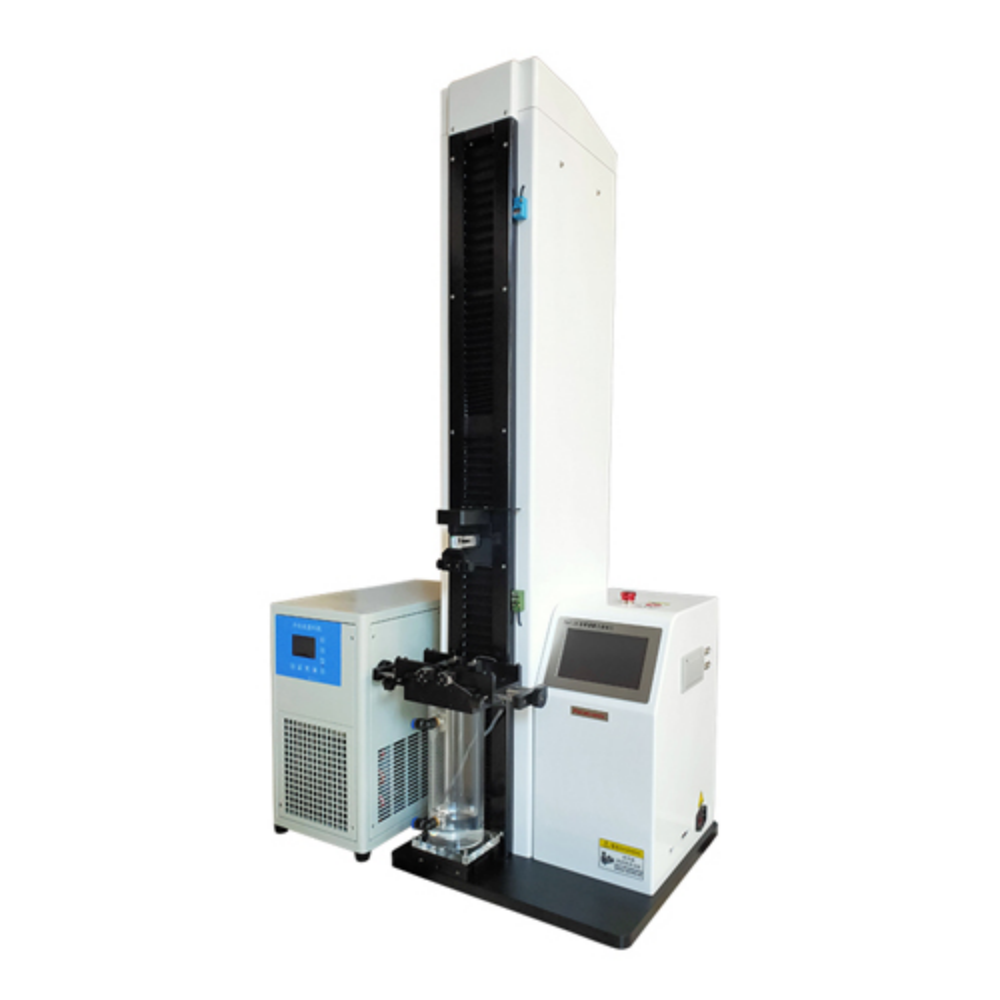

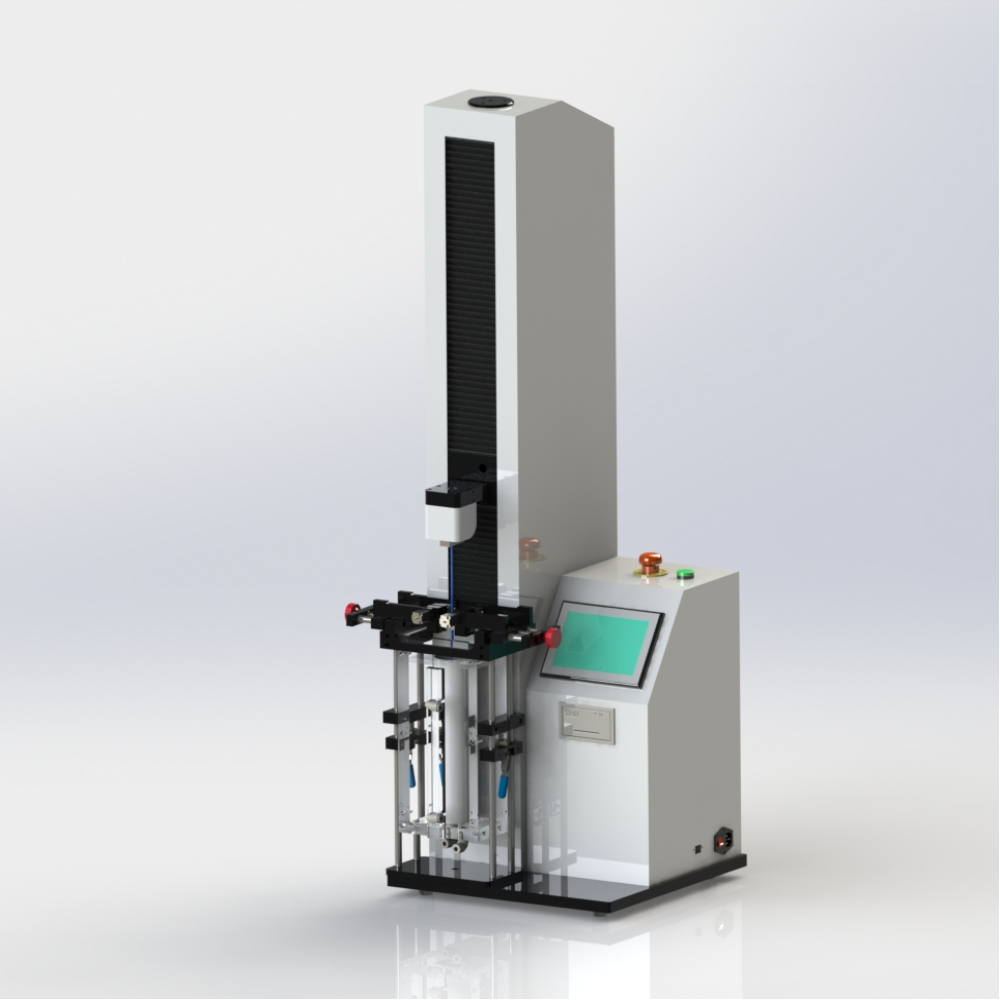

The XHD-10 Catheter and Guidewire Friction Tester is developed in accordance with the standards of "YY/T1536-2017 Standard Test Model for Evaluating the Sliding Performance of Non-Vascular Catheter Surfaces" and "TCAMDI021-2019 Disposable Hydrophilic Coated Guidewire". It is a high-precision testing instrument developed for testing the friction performance indicators of medical catheters and guidewires used inside and outside the human body. The device utilizes imported high-precision sensors, high-precision ball screws, and a unique structural design to ensure highly stable operation. The test results and curves are accurate and stable, and the stepless speed adjustment can meet the requirements of non-standard experiments for testing speed. This equipment is widely used in testing institutions and medical device manufacturers.

YY/T1536-2017，TCAMDI021—2019

l Imported microcomputer control technology;

l Multiple operating modes available, including constant force and displacement modes;

l High-precision ball screw drive, high-quality stainless steel guide rails, and reasonable layout ensure stable instrument operation;

l Uses imported high-precision force sensors, with measurement accuracy better than 0.5 grade;

l Uses precision differential motor drive for smoother transmission, lower noise, more accurate positioning, and better repeatability of test results;

l LCD display, fully automatic measurement, with test data statistical processing function;

l High-speed miniature printer output, fast printing, low noise, no ribbon replacement required, and easy paper roll replacement;

l Built-in dedicated calibration program for easy calibration by metrology and calibration departments (third parties);

l High-definition color 7-inch touch screen displays curves and text for clearer visuals;

l Can be equipped with computer software for bidirectional operation (optional);

l Cross-centering adjustment device ensures accurate and reliable testing;
