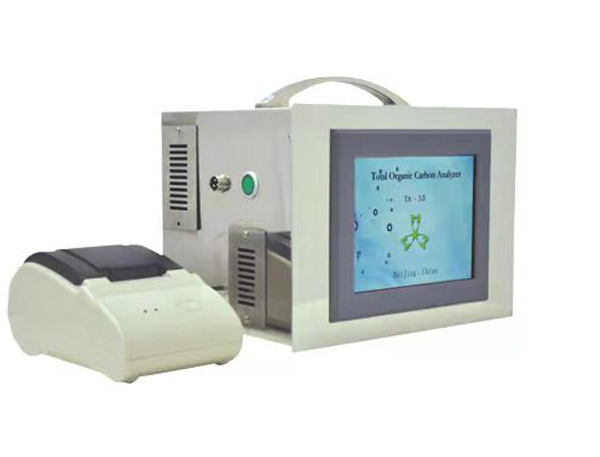

XHD-02C Total organic carbon Analyzer
Product Category:Pharmaceutical Testing Equipments
XHD-02C Total organic carbon Analyzer independent research and development by our company which is to make a tiny adjustment on the basis of TA - 2.0, where the instrument shell adopts 304 stainless steel design,greatly improving the equipment adaptability in different environments. It can meet the choice of two different schemes for the single point of real-time monitoring or multiple point time-division monitoring, not only meeting the requirements of national laws and regulations, but also saving investment, where we have several successful cases.
※ It adopts the modular design, which can carry out data upload and communication with different water systems and control systems, with a real-time display;
※ It provides customers with two options, for both the single point real time and multiple point time-division online monitoring;
※ It has the waterproof design, which can work in high humidity and temperature environment
Power Supply | 100-260VAC 50HZ,120W |
Conductivity Detection Range | 0.055µs/cm-8.000µs/cm |
Measure Range | 0.001mg/L- 1mg/L(1 - 1000ppb) |
Accuracy | ±3% |
RSD | Repeatability ≤ 3% |
Resolution | 0.001mg/L |
Response Time | 5mins |
Measuring Limit | 0.001 mg/L |
Sample Temperature | 1-95℃ |
Applied Range | Online |
Audit trail,Records | ≥ 3years storage |
Authority Management | User name and password login |
Print Function | External Printer |
Data Copy | USB disk to export the data |
Display Screen | Color Touch Screen |
Weight | 8.5KG |
Dimension(mm) | 300*210*250 |
