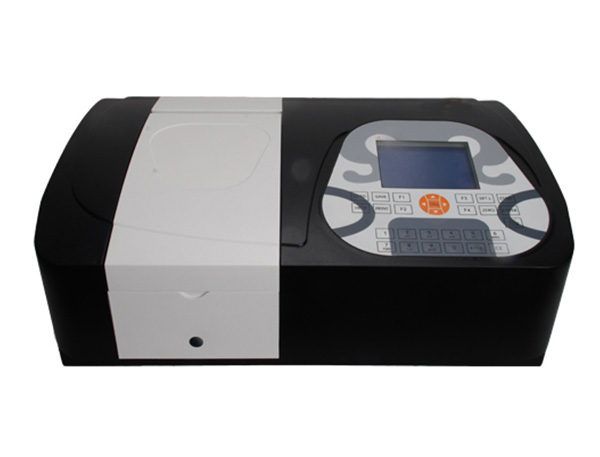

XHD-IU UV-VIS Spectrophotometer

Product Category：Pharmaceutical Testing Equipments

 Click to find us  Contact us

Share:   

Product Description

The UV-Vis spectrophotometer is the most widely used analytical instrument in the world. Its application fields involve scientific research, production, teaching, etc. It is used for quantitative analysis, qualitative analysis, purity analysis, structural analysis and reaction kinetics research.

Product Features

The Main unit and PC software can independently implement fun ctions of Quantitative;Kinetics;Wavelength Scan; Multi Wavelength; DNA/Protein and Data Printing,PC software can complete the function of data processing.

Suspended posture optical system design, strengthen and thicken the bottom plate to eliminate the vibration or transformation’s impact on the optical system.

24-bit high speed and high precision A/D conversion, and improve the sensitivity of the instrument.

The core components are imported from Germany and Japan.

Optical system based on optical system, based on top structure design, top technological requirements and top raw materials.

Standard with PC software

Technical Parameter

	A	B	C	D	E	F	G
Wavelength Range	320-1100nm	190-1100nm	190-1100nm	190-1100nm	190-1100nm	190-1100nm	190-1100nm
Bandwidth	2nm	2nm	1.8nm	1.8nm	0.5/1/2/4nm	1.8nm	0.5/1/2/4/5nm
Wavelength Accuracy	±0.5nm	±1nm	±0.5nm	±0.1nm (D2 656.1nm); ±0.3nm (Full range)
Wavelength Reproducibility	≤0.2nm	≤0.3nm	≤0.2nm	≤0.1nm	≤0.1nm	≤0.1nm	≤0.1nm
Photometric Accuracy	±0.3%T	±0.5%T	±0.3%T	±0.2%T	±0.2%T	±0.2%T	±0.2%T
Photometric Repeatability	0.15% T	≤0.2%T	0.15% T	0.15% T	0.15% T	0.15% T	0.15% T
Straylight	≤0.05%T	≤0.05%T	≤0.05%T	≤0.03%T	≤0.03%T	≤0.03%T	≤0.03%T
Stability	±0.0001A/h(500nm)	±0.001A/h(at 500nm)				±0.0004A/h(at 500nm)
Baseline Flatness	±0.001A/h	±0.0005A	±0.001A	±0.0015A	±0.0015A	±0.001A	±0.001A
Noise	±0.0005A/h	±0.001A	±0.0005A	±0.0005A	±0.0005A	±0.0005A	±0.0005A
Photometric Range	"0-200%T, -0.3--3A, 0-9999C					0-200%T, -4.0--4.0A, 0-9999C
Wavelength setting mode	Automatic
Scanning speed	—	—	High,Middle,Low,Optional
Output	USB Port
Printer port	Parallel Port
Display	LCD(128*64)	LCD(128*64)	LCD(320*240)	LCD(320*240)	LCD(320*240)	LCD(320*240)	LCD(320*240)
Light Source	Tungsten Lamp	Deuterium&Tungsten Halogen Lamp
Detector	Silicon Photodiode
Power	220V AC ±10%/50Hz or 110V AC / 60Hz
Dimension	460x380x180mm	420x300x160mm	460x380x180mm	470x370x180mm	470x370x180mm	625x430x210mm	625x430x210mm
Weight	15Kg	13Kg	20Kg	20Kg	20kg	28kg	28Kg
