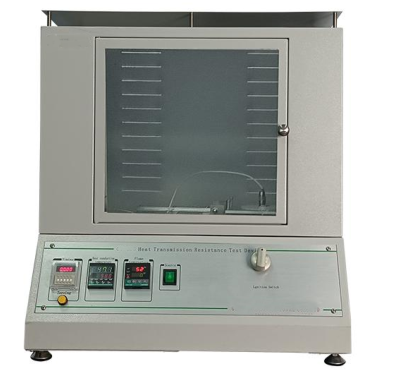

XHF-19PTA Heat Transmission Resistance Test Device

Product Category：Protective Clothing Tester

 Click to find us  Contact us

Product Description

XHF-19PTA Heat Transmission Resistance Test Device,To determine the heat transmission performance of textiles, fire-fighting supplies and other materials.

Put sample on the a certain amount of heat flux fire source, test the time of temperature increasing specified value (△t=24℃) by calorimeter sample’s back. And refer it as index of judging heat conduction property.

Test Standards

EN367, ISO 9151

Product Features

Can be digital display flame temperature, measurement temperature, time.

The burner is suitable for combustion of oil gas in the flame nozzle, air holes in Inner-Ring-and-Outer-Ring, calorimeter located inside holes on upper sample holder, which directly touch with sample

Technical Parameter

Heat Source	Liquefied Petroleum Gas
Density of Heat Flow Rate	≧40KW/m2
Counting Range	0～100s
Temperature Measure Range	20℃～200℃
Sample Dimension	145×145mm
Calorimeter Diameter	Φ40
Power Supply	1∮ AC 220V 50/60Hz 1.5KW
