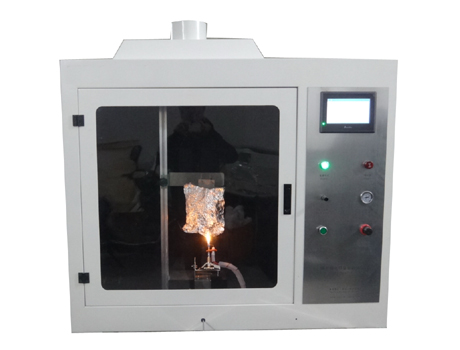

The flame spread tester is designed according to ISO 15025 standard; This tester is used for the protective clothing’s of flame spread state in a small flame.

BS EN ISO 15025:2002, ISO 11999-4

1.The combustion chamber is made of stainless steel; elegant appearance, corrosion resistance; Sizes: 1200mm X 600mm x 1200mm

2. All the sample holders are made of stainless steel manufacturing;  corrosion resistance

3. Imported standard burner; nozzle orifice 0.19mm; flame height: 25mm ± 2mm, vertical length 40mm ± 2mm

4. Test time is automatically recorded and storage; timer accuracy 0.1s.

5. PLC control system with touch screen; Test process is more intelligent; Test data is automatically recorded and storage

6. Imported brands gauge and control valve, the gas pressure is more stable.

7.Imported needle, precisely control the flame height; flame is more stable.

8.High intelligence, simple operation, easy to operate.

9. Two sample holders for the surface burning test and bottom burning test; Material is stainless steel;

10. System automatic ignition and automatic extinguishing;

11. Equipped with a flame height gauge

12.The burner angle is adjustable to horizontal, vertical & 30 °

13.the programmable controller and 7 "touch screen for control / testing / computing / data display.

14. Automatic ignition with pulsed high voltage electronic.

15.No need hand-held stopwatch or timer manuscript; Test time is automatically recorded and generate test reports;

16. The test time and ignition time could be set freely on the touch screen. Meet variety of testing standards;

17. The bottom surface and bottom edge test process could be switched on the touch screen
