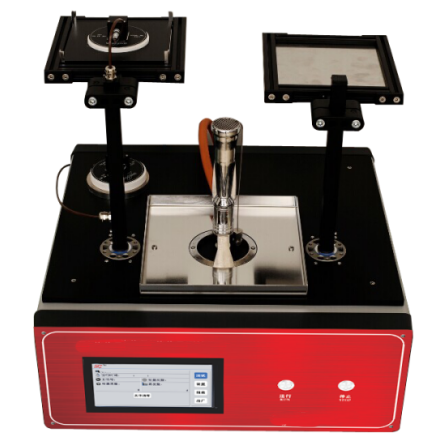

XHF-19PT Heat Transmission Resistance Test Device

Product Category：Protective Clothing Tester

 Click to find us  Contact us

Share:   

Product Description

This tester is designed according to ISO9151. The instrument is simple to operate, the data is accurate, safe and reliable. It is widely used in fire protective clothing related companies and inspection departments.

Test Standards

ISO9151, EN367, EN 407

Product Features

1. Color touch screen display and control, English interface, menu based operation mode.

2. The core control components are composed of a multifunctional motherboard using STMicroelectronics N.V. 32-bit chip.

3. The instrument is equipped with an imported header for precise control.

4. The heat source can be manually adjusted for easy operation.

5. The temperature recorder can collect and record temperature in real time.

6. The time recorder records the temperature change time in real time.

7. Metal protective shield, equipped with intelligent water circulation control system.

8. Calibration calibrator for heat distribution can quickly complete calibration to ensure the accuracy of data.

9. Computer software connection, continuous recording and real-time display of temperature curve.

Technical Parameter

99% pure copper calorimeter -18g calorimeter plate (Φ 40mm, 1.6mm), surface treated with chemical black paint, heat absorption coefficient>0.9, equipped with constantan thermocouple.
The installation module of the calorimeter (Φ 89mm, 13mm) adopts Monolux500 insulation board with a density of (750 ± 50) kg/m3 and a thermal conductivity of 0.18W/(m.K) ± 10%.
Aluminum mass calorimeter positioning plate	149 × 149mm, 264g.
Copper sample support frame, size	150 × 150mm
Propane Meker burner, adjust flow rate to achieve a heat flux of 80 kW/m2.
Pneumatic baffle, system automatic control, movement time of 2 seconds.
High precision data recording system, with a time of 0.1 seconds.
Configure upper computer software, test parameters can be set.
The software has a built-in calibration system to optimize the testing process.
Real time display of temperature curve during testing, software automatically calculates and outputs material heat transfer index.
Size:	500 × 500 × 500mm.
Power supply:.	AC220V，50Hz，500W
Weight:	50kg
