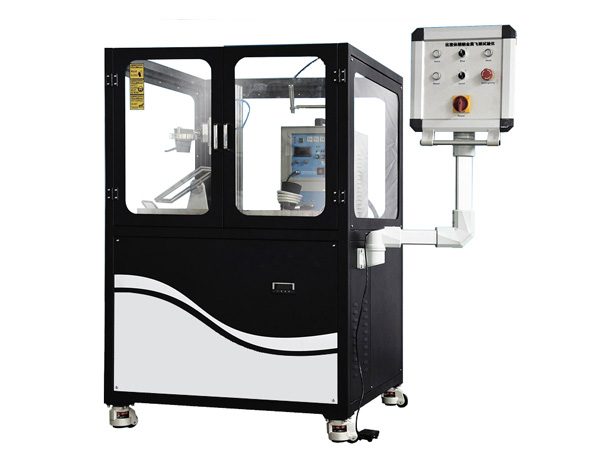

Materials are tested by pouring quantities of molten metal onto the test specimen supported at angle to the horizontal on a pin frame. Damage is accessed by placing an embossed thermoplastic PVC sensor film directly behind, and in contact with, the test specimen and nothing changes to the film after pouring. Any adherence of the metal to the test specimen surface is also noted.

 ISO 9185

1. Crucible: Height: 97mm, Top Diameter: 80mm, Bottom Diameter: 56mm, Capacity: 190ml.

2. High frequency heating device, can melt metals at temperature not lower than 1800℃.

3. The infrared temperature measuring device is used to measure the temperature of the molten metal, which can measure temperature not less than 2200℃.

4. Equipped with a circulating water cooling device.

5. Metal pour device’s pour inclined angle and speed is controller by stepper motor.

6. Stainless steel sample holder is used for installing specimen and PVC sensor film.

7. Sand Tray is at bottom.

8. With protection cover to protect operator.
