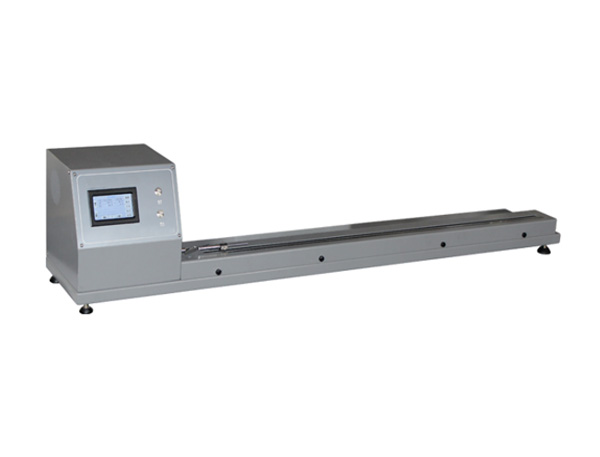

XHX-17B Automatic Yarn Crimp Tester

Product Category：Color Fastness Tester

 Click to find us  Contact us

Share:   

Product Description

XHX-17 Yarn crimp tester is designed to measure yarn crimp or take-up in woven fabrics and stitch or course lengths in knitted fabrics. Detach the yarn from a piece of given-length fabric, unbending it under given force and measuring its length. To calculate the crimp in yarn affected by knitting or weaving, to determine actual yarn usage.

LCD display, main frame is made of stainless steel and aluminum alloy.

Test Standards

ISO7211, BS 2863, BS 2865 , BS 2866, ASTM D3883

Product Features

Color touch screen operation.

Adopt stepper motor transmission to ensure steady running.

Initial Length automatic Positioning, automatic measure elongation.

Two test method, fix force and fix elongation.

Adopt high precision sensor to ensure accurate test results

Technical Parameter

Tension range	0~200cN
Resolution	0.01cN
Testing Accuracy	±1%FS
Length Range	10~1000mm
Testing Speed	2-100mm/min
Testing Times	≤99 Times
Dimension	1300mm×290mm×320mm
Weight	37Kgs
Power Supply	110V/220V, 50/60Hz
