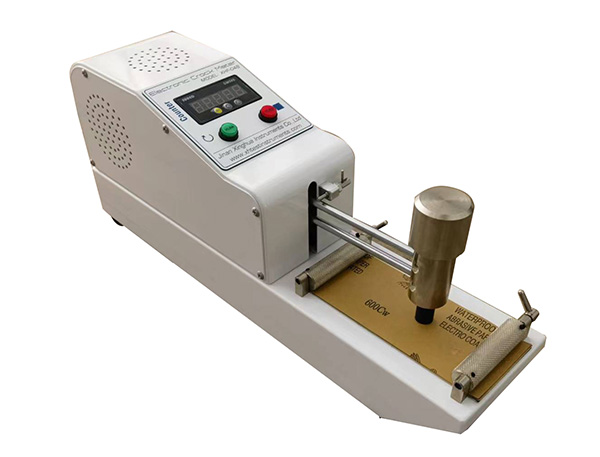

XHF-04B Electronic Crock Meter

Product Category：Color Fastness Tester

 Click to find us  Contact us

Share:   

Product Description

Electronic Crock Meter is used for testing the fastness to dry or wet rubbing and the fastness to brushing of all kinds of colored textiles, motorized operation, auto stop when counts reach pre-set counts.

Test Standards

ISO105-X12, D02, Bs1006 D02, DIN54021, IWS Tm165, JIS K6328, AATCC8/165

Product Features

1. Adopt linear slide, running more smooth.

2. Rubbing head always keep horizontal, no matter thickness of specimen, no adjust position of rubbing head, easier operation.

3. Adopt block pressing method, better clamping specimen.

Technical Parameter

Testing times	1-99999
Rubbing travel	104±3mm
Rubbing speed	60r/min
Rubbing pressure	9N
Rubbing head	Roundness :ф 16mm
External Dimensions	600mm×225mm×270mm
Weight	13kgs
Power	AC 220V/110V, 50/60Hz
