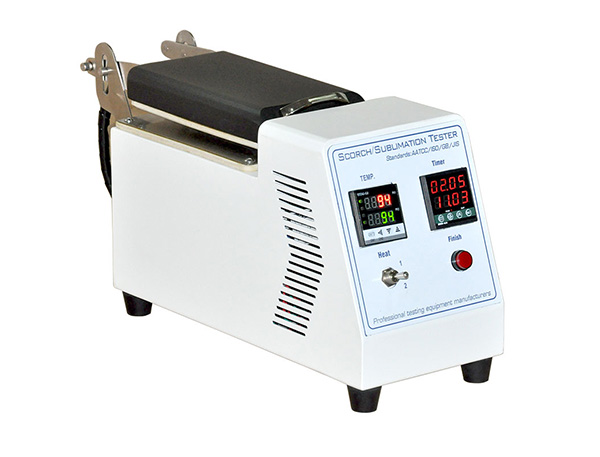

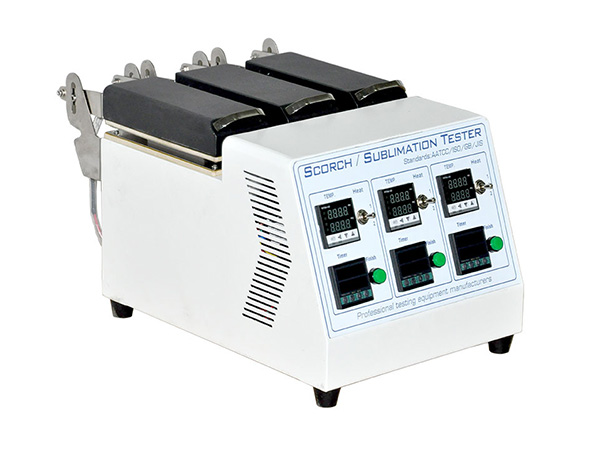

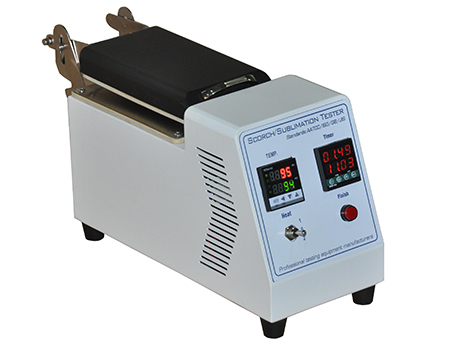

XHF-58 Sublimation Fastness Tester

Product Category：Color Fastness Tester

 Click to find us  Contact us

Share:   

Product Description

Sublimation Fastness Tester is used to determine color fastness to hot pressing and dry heat and to conduct sublimation tests. Providing controlled conditions of dry heat and pressure with top and bottom heated surfaces, electronic temperature controller and carefully controlled top plate weight.

Test Standards

GB/T 5718, GB/T6152, M&S C13, ISO 105-P01, X11 BS1006, AATCC 92 114 117 133, DIN 54022/54060

Technical Parameter

Test stations	1 or 3 or 5
Upper and lower heating plate dimension	102mmx29mm
Heating Method	1) One Side heating, 2) Dual sides heating
Test Temperature	Room temperature-300C (Adjustable)
Specimen dimension	100mmx40mm
Timer range	0-9999 s ( Light indication when reach test time)
Temperature controller	Set temperature, Auto constant temperature control
Test pressure	4±1KPa
Dimension	300mmx415mmx270mm
Weight	17kgs
Power supply	AC220V±10%, 50Hz
