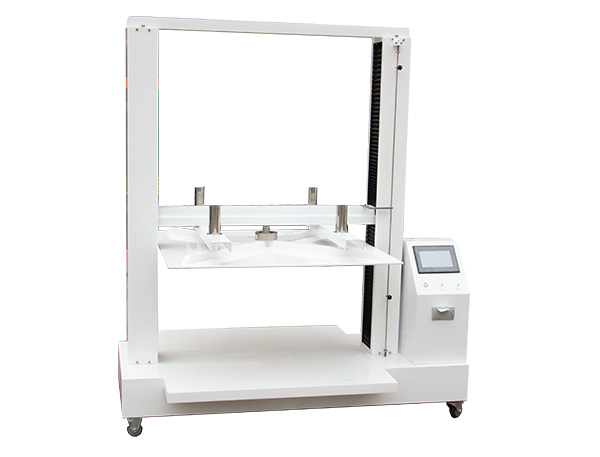

XHV-08 Box Compression Tester is  used to test compressive strength of cartons, containers and other packaging structure, adopts dynamic holding pressure technology, simulates stacking the test of pile, in order to know the compressive strength and impact-resistant capacity of product packaging during transportation and stacking , This machine adopts Load Cell Sensor, through computer analyse then it will directly displayed the resistance force on the screen through the computer. The test results can used as the reference for packaging design.

ISO 12048, ASTM D642, ASTM D4169, TAPPI T804,JIS Z0212, GB/T 16491, GB/T 4857.4, QB/T 1048-2004

1. Big 7 inch touch screen operation, fast data collection, test automatically, intelligent judgment, display load-displacement graph (N/mm).

2. Three test methods:Compression test, stacking test, press standard test.

4. Open structure, double precision ball screw drive system, double column, reduction gears drive reduction, good parallelism, good stability, strong rigidity, long service life.

5. High precision stepper motor controls with high precise, low noise.

6. Accurate position and fast response speed save test time.

7. Ultimate travel protection, overload protection, bugs prompt and fault prompts intelligent configuration to ensure safe operation, micro-printer can print test data easily.

8. Automatic return to test position.

9. Select test software+ PC, can use both touch screen and PC to control the test, display real time graphs, output detail test report.

10. Two test methods:compression test, stacking test
