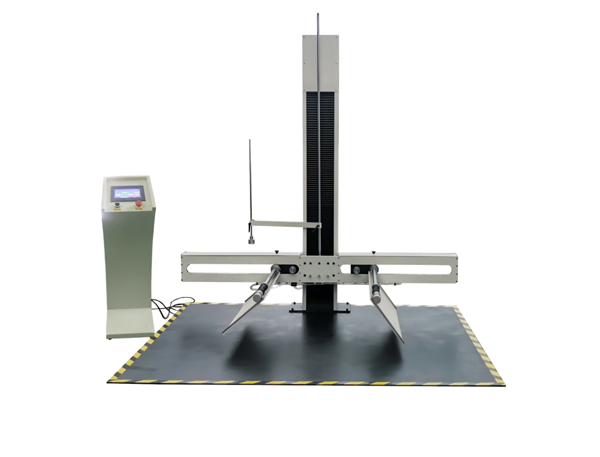

XHV-07B Double Wing Drop Impact Tester

Product Category:Packaging Tester

Share:

Product Description

XHV-07B drop tester is mainly used for assessment package in the actual transportation, loading and unloading process by dropping impact in the influence degree, evaluate packing in handling impact resistance strength and the rationality of the design of packaging.


Test Standards

ISO 2248, JIS Z0202-87, ASTM D5276, ISTA


Product Features

Drop tester is mainly used for performing drop test for big carton, it can do various test according to the test subjects requirements (surface, edges, Angle test) after place specimen in balance status. During the test, the rack move down in high speed and leave from specimen, because of high speed shock absorber, the rack is embedded in the base plate.


Technical Parameter

Mass of Specimen

0-80Kgs

Max Dimension of Specimen

1000 x 1000 x 1500mm

Testing Height

350-1500mm (adjustable)

Dimension of Each Wing

700mmx280mm

Dimension of Impact Panel

1600 x 1800mm

Parallel error of impact panel

<

Accuracy of Test Height

±10mm

Test method

Surface test, Edge test, Angle test

Drop

Electric

Lifting

Electric

Error in the angle between the falling surface of the specimen and the horizontal during the falling process

<

Protection

Motor fault protection, High and low limit protection, Emergency stop

Dimension

1600 x 1800 x 2200 mm

Power Supply

220V, 50Hz, 2000W

Weight

About 300Kgs
