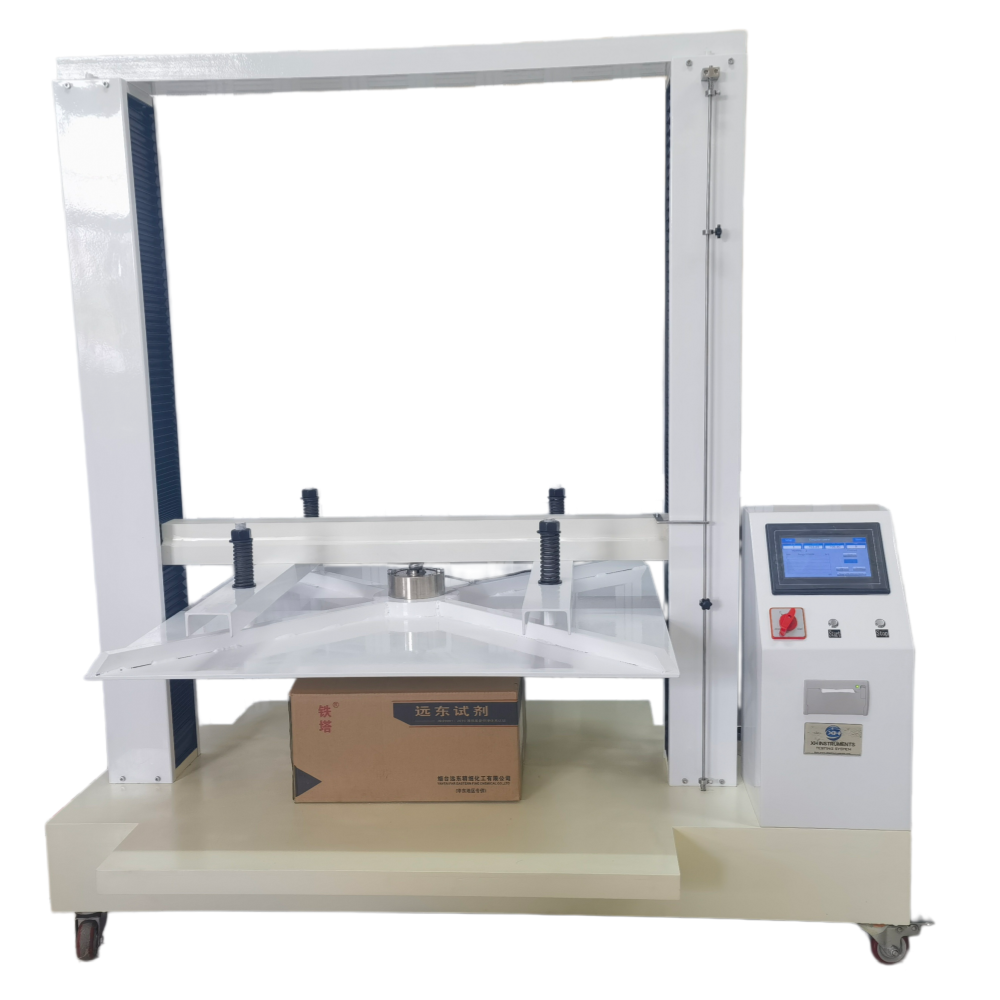

XHV-08 Type Compression Testing Machine with multi-function and high precision is designed to test the compressive strength of small size. It is used for testing anti-pressure of boxes and cartons. It is mainly suitable for all kinds of corrugated cartons and other material packages which anti-pressure is less than 20KN, It is used for testing the whole box anti-pressure, and stacking pressure. So it is ideal testing equipment for paper-making, packaging, quality-inspecting department and so on.

ISO 12048, ASTM D642, ASTM D4169, TAPPI T804,JIS Z0212, GB/T 16491,GB/T 4857.4, QB/T 1048-2004

1.Big 7 inch touch screen operation, fast data collection, test automatically, intelligent judgment, display load-displacement graph (N/mm).

2. Two test methods:Compression test, stacking test.

3. Open structure, double precision ball screw drive system, double column, reduction gears drive reduction, good parallelism, good stability, strong rigidity, long service life.

4. High precision stepper motor controls with high precise, low noise.

5. Accurate position and fast response speed save test time.

6. Ultimate travel protection, overload protection, bugs prompt and fault prompts intelligent configuration to ensure safe operation, micro-printer can print test data easily.

7. Automatic return to test position.

8.Select test software+ PC, can use both touch screen and PC to control the test, display real time graphs, output detail test report.
