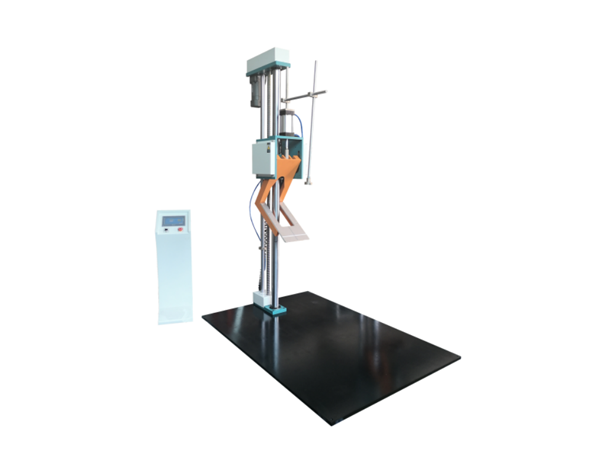

XHV-07A Single Wing Package Drop Impact Tester

Product Category:Packaging Tester

Share:

Product Description

Package Drop Impact Tester is driven by a pneumatic cylinder controlling a single wing structure. It only takes a small space to operate and is ideally suited for testing the impact of cartons, luggage cases, suitcases, electric equipment, etc. It can do various test according to the test subjects requirements (surface, edges, Angle test) after place specimen in balance status.


Test Standards

 ISO 2248, JIS Z0202-87, ASTM D5276, ISTA


Product Features

This machine adopts a ball screw and double guide rod structure, which makes the machine structure more stable.



The lifting motor comes with a brake device for more precise height control.



Adopting pneumatic drop with automatic reset function.



Equipped with a PLC touch screen and using a decoder for height tracking, it can accurately provide the product's drop height, with an error of no more than 2% or 2mm from the preset drop height.



The unique buffering device reduces noise and greatly improves the service life, stability, and safety of the machine.



Convenient single arm product fixing device that can meet different testing requirements for the surface, edges, and corners of the product.



Adopting exclusive structure, the machine is simple and beautiful.


Technical Parameter

Mass of Specimen

0-80Kgs

Max Dimension of Specimen

800 x 800 x 1000mm

Testing Height

350-1500mm (adjustable)

Thickness of Impact Panel

14mm

Dimension of Impact Panel

1700 x 1200mm

Parallel error of impact panel

<

Accuracy of Test Height

±2%

Test method

Surface test, Edge test, Angle test

Drop

Pneumatic , automatic reset

Lifting

Electric

Error in the angle between the falling surface of the specimen and the horizontal during the falling process

<

Protection

Motor fault protection, High and low limit protection, Emergency stop

Air Source

6Kgs/cm2

Dimension

1700 x 1200 x 2315mm

Power Supply

220V, 50Hz, 400W

Weight

About 300Kgs
