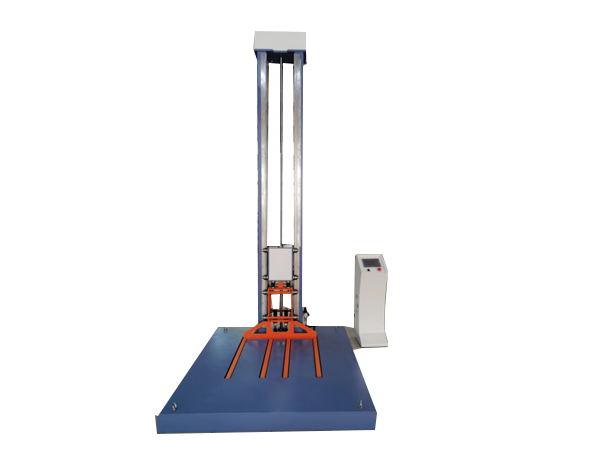

XHV-07C Zero Drop Impact Tester

Product Category:Packaging Tester

Share:

Product Description

XHV-07C drop tester is mainly used for assessment package in the actual transportation, loading and unloading process by dropping impact in the influence degree, evaluate packing in handling impact resistance strength and the rationality of the design of packaging.



XHV-07C drop tester is mainly used for performing drop test for big carton, it can do various test according to the test subjects requirements (surface, edges, Angle test) after place specimen in balance status. During the test, the rack move down in high speed and leave from specimen, because of high speed shock absorber, the rack is embedded in the base plate.


Product Features

Electric lifting use Japan Nidec servo motor plus driver.


Protection: Equipped with safety grating protection, fence protection, and lock linkage function to ensure the safety of testers during the testing process.


There are induction protection devices on the top and bottom.


Impact Panel: 45# Steel Panel.


Adopt Delta PLC control and color touch screen for operation.


Support arm structure: the mechanical frame method is adopted, which is not  deformed; the four-forks structure is adopted, which can fix the sample conveniently and stably.


Acceleration device: mechanical (when falling, ensure that the falling speed of the bracket is faster than the falling speed of the test product).


Drop Method adopt pneumatic drop.


Electrical control: use Chint, Simens, ABB, Schneider... and other well-known brands to control the electrical.


Adopt high quality reducer.


Surface treatment: electrostatic powder spraying.


Vibration damping: heavy duty hydraulic shock absorbers.


Technical Parameter

Max Mass of Specimen

300Kgs

Testing Height

0-2000mm (adjustable)

Accuracy of Test Height

5mm

Max Specimen Dimension

1300x1200mm

Min Specimen Dimension

160x100mm

Test method

Surface test, Edge test, Angle test

Drop

Pneumatic

Dimension of Impact Panel

1800mmx1800mmx130mm

Max Lifting Speed

0-1500mm/min (adjustable)

Dimension

1800mmx1800mmx4200mm

Power Supply

220V, 50Hz, 2000W

Weight

About 2000Kgs
