+86-531-67880131Your Location：Home > PRODUCTS>Leather and Footwear Testing Equipments>Flexing Tester

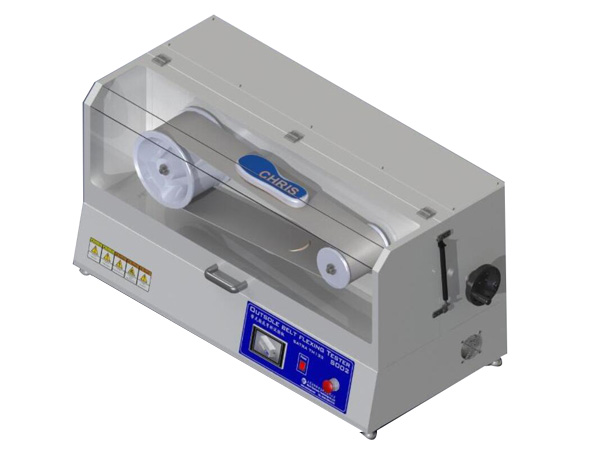

The Belt Flexing Tester proves one of the best indications of cracking of shoe sole due to flexing in wear. The sole forepart is attached to an endless belt which passes around two pulleys, the large one provides the rotation whilst the same one determines the severity of the flexing action. It is supplied with three small pulleys of diameters to increase or decrease the amount of flexing.
SATRA TM133, ISO 16177
Belt Dimension | Length: 1930±50mm Width: 140±5mm |
Speed | 90±8 cycles/min |
Big Wheel Diameter | 225±5mm |
Small Wheel Diameter | 60±0.5mm, 90±0.5mm, 120±0.5mm |
Capacity | Max 6 sole |
Counter | Touch Screen, 0-999,999 |
Dimension(W×D×H) | 1450×600×600mm |
Weight | 170kg |
Power Supply | AC220V±10%, 50Hz/60Hz |
