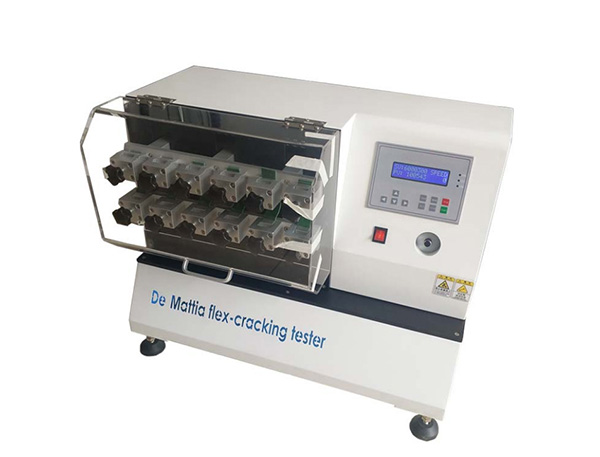

XHF-103 Demattia Flex Tester

Product Category：Flexing Tester

 Click to find us  Contact us

Share:   

Product Description

Shoes Upper Material Flex Tester is to determine bending resistance of rubber, leather, synthetic leather, shoe sole and other materials. And inspect its flex cracking resistance, resistance to cracking and crack growth degree by repeatedly flexing in certain times and stroke, stop automatically when door open

Test Standards

ISO7854-3.1 JIS-K6301，ASTM-D813，D430，BS-903，HG4-836，837，GB/T13934-92 GB/T 20991 6.5.1, GB/T12586-2003, HG/T 3086-2011, ISO4649, EN12770, ISO 20344

Technical Parameter

Model	XHF-103A	XHF-103B	XHF-103C
Specimen Size	(L)125-155(w)20-25(D)mm
Clamps Max. apart	57mm	76mm	70mm
Moving Clamp Stroke	44mm	57mm	57mm
Clamps Min. apart	13mm	19mm	13mm
Test Speed	300±10 cpm (Adjustable)
Counter	LCD Display 0-999999
Test Position	6 pcs (10 Pcs, 12 Pcs is optional)
Power Supply	AC 220V 50/60HZ
Dimensions ( L x W x H )	680x460x580mm
Weight	68kg
Standards	ISO 20344:11 item 6.5.2.2.	ASTM D813, D430, GB/T13934,13935, JIS-K6301, ISO132,133, BS-903-A10	ISO 7854-Method A, BS 3424:Part9, GB/T 12586 Method A, EN ISO 2023, Annex E
