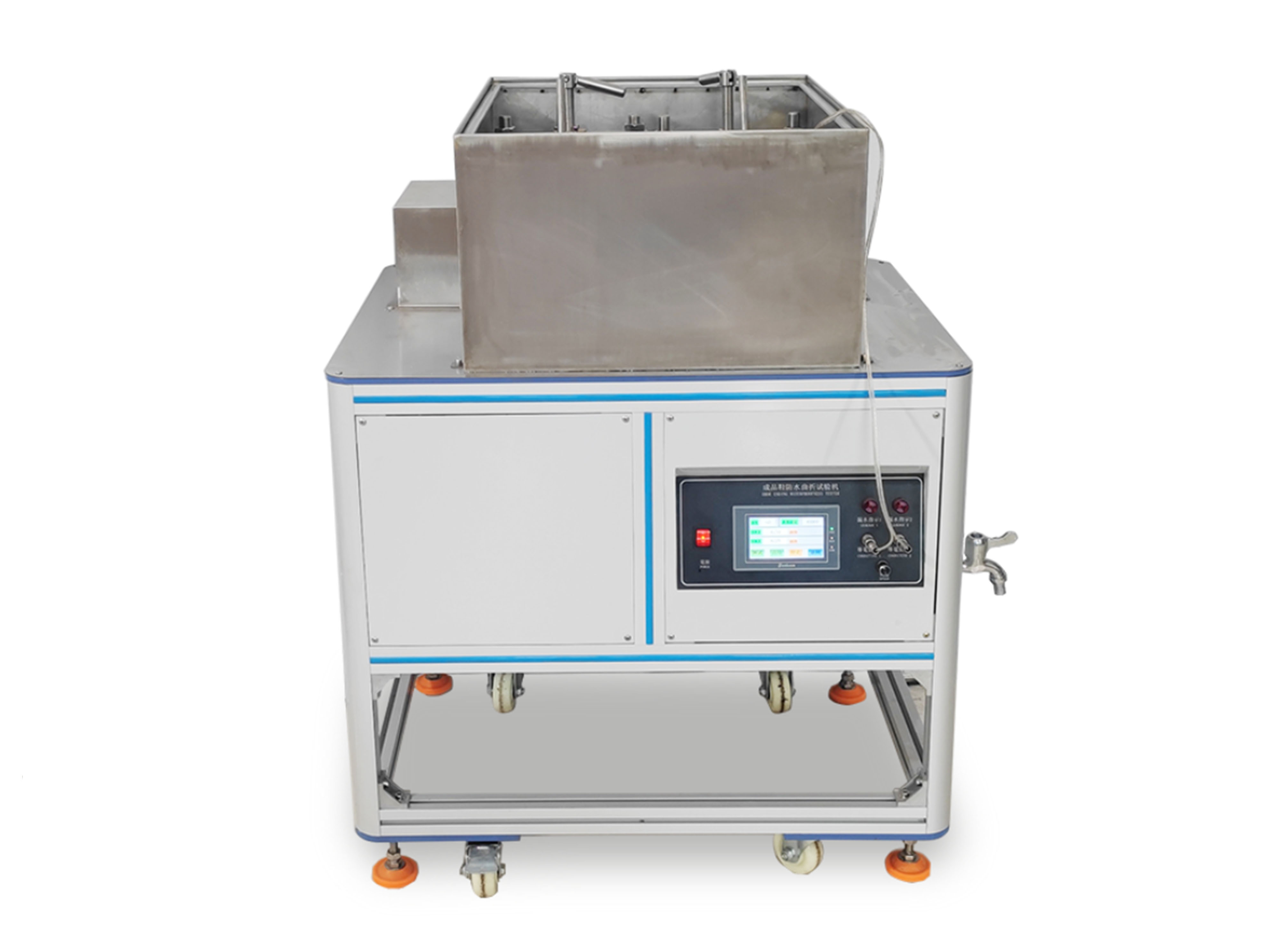

Dynamic Footwear Water Resistance Tester can be used to test the dynamic waterproof performance of different kinds of finished shoes according to Satra TM77.

Principle:

Install finished shoes on test device, and fill the tank with a certain deep of water to touch with shoes. It push forward the forefoot bending by certain angle and frequency by simulating people walking in water with shoes, to test bending times required for water penetrate from shoes outside to inside or determine the penetration situation after certain bending times.
It can test a pair of shoes simultaneously and equip with one total setting counter (control total test times), and two separated small counters (display separately bending times of single sample). If water penetrate into shoes, small counter stops and records the bending times when it stops. Sensing Method is that determine whether.

SATRA TM 77

1. The mechanical parts are made of non-corrosive structural aluminum and stainless steel materials.

2. The surface treatment of the machine body use American DuPont powder.

3. Color touch screen operation, Can test 2 shoes at the same time.

4. Full stainless steel water tank.

5. Speed and flexing angle is adjustable.

6. Dual sensor to detect water leakage, alarm when there is water leakage.

7. maintenance, stable and reliable.
