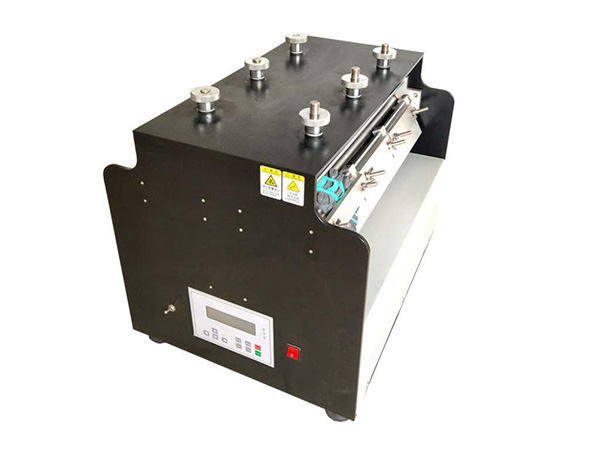

XHF-145 Footwear Ross Flexometer

Product Category：Flexing Tester

 Click to find us  Contact us

Share:   

Product Description

Ross Flexometer is a straight - Angle test for rubber products, soles, PU and other materials.After the specimen is constantly retractable and bent, it can be examined for its decline, damage and crack.

Test Standards

ASTM-D1052, ISO-5423, SATRA TM60, HB-T2411, HG/T 2411, ISO-4643

Product Features

LCD display controller, menu operation mode.

The position can be adjusted by jogging, and the test speed can be Adjusted.

Mechanical parts are composed of non-corrosive structural aluminum and stainless steel materials.

Precision motor driving, stable operation and low noise.

With counting and timing self-stop function, can automatically stop the test when reach set test times

One-button automatic test, easy to operate.

Technical Parameter

Specimen Capacity	6 Groups (12 Pcs)
Flexing Angle	90±2º
Test Speed	0-100r/min can be set
Dimension	500mmx610mmx550mm
Weight	105Kgs
