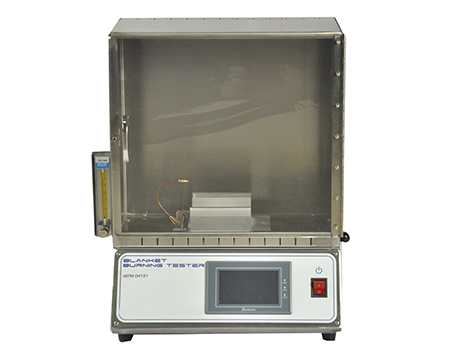

XHF-19G Blanket Flammability Tester
Product Category：Flammability Tester
Blanket Flammability Tester is designed and developed based on ASTM D4151. It is suitable for bedding, including bed sheets, blankets, mattress mattress, pillow, duvet, and similar products that used to cover on the bed of the flame retardant performance. This test method is use standardize flame to burn the sample surface within the prescribed time, observing the combustion, degree of damage or discoloration of standard sample, in order to evaluate the fabric’s grade in the test.
ASTM D4151
Dimension of test chamber | 370mmx220mmx350mm |
Sample Clamp | Inner Hole 2.5’’ (63.5mm) |
Sample Dimension | 70mmx70mm |
Test Paper | 75mmx90mm, Inside 50mm hole |
Flame Height | 19mm adjustable |
Brush Weight | 75+/10g |
Dimension | 420mmx260mmx520mm |
Weight | 20Kgs |
Power Supply | AC 110V/220V, 50Hz/60Hz |
